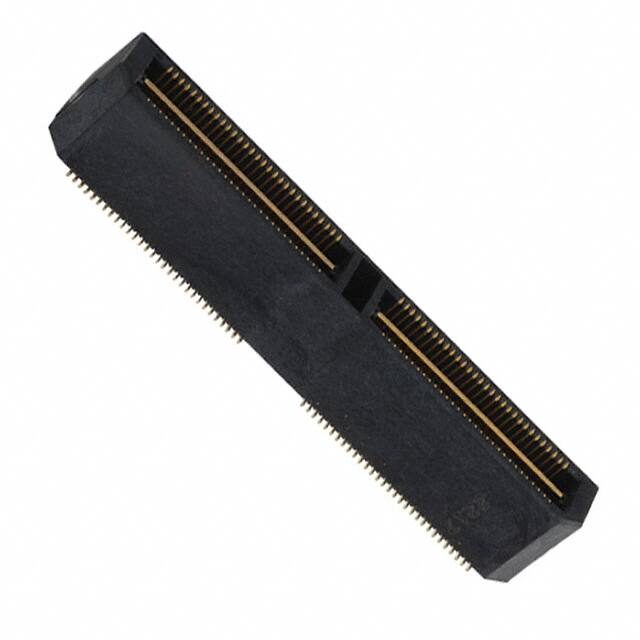

QTH-060-02-L-D-A Samtec QTH-060-02-L-D-A is a .5mm pitch high-speed ground plane SMT header connector with 120 positions in 2 rows. It features gold contact finish, 8mm mated stacking height, and includes board guide and ground bus plane features.
Mfr Part #:

QTH-060-02-L-D-A

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec QTH-060-02-L-D-A is a .5mm pitch high-speed ground plane SMT header connector with 120 positions in 2 rows. It features gold contact finish, 8mm mated stacking height, and includes board guide and ground bus plane features.
✓ Total Stock: 235 pcs
$ Price Range: $4.09 - $6.49

QTH-060-02-L-D-A Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
210 pcs
On Request
210 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
25 pcs
On Request
25 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QTH-060-02-L-D-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Halogen Free
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

QTH-060-02-L-D-A Description

Short technical summary and product information.

The Samtec QTH-060-02-L-D-A is a .5mm (0.0197") pitch high-speed ground plane SMT header connector from the QTH-DP-RA series. This connector has 120 positions arranged in 2 rows and is designed for surface mount soldering. It features a gold contact finish with 10.0µin (0.25µm) thickness on the contacts.



The connector has a mated stacking height of 8mm and a height above board of 0.286" (7.26mm). It includes board guide and ground bus (plane) features to aid in alignment and signal integrity. The connector is rated for high-speed protocols with a Channel Performance Metric (CPM) of 14 Gbps NRZ, making it capable of supporting protocols such as SATA 3.0, SAS 3.0, and PCIe 4.0.



This component is packaged in trays with 64 parts per package. It is designed for mezzanine board-to-board applications where a compact, high-density interconnect solution is required. The connector's ground plane design helps manage impedance and reduce crosstalk in high-speed digital systems.

QTH-060-02-L-D-A Quick Information

Product Type: Header Connector
Series: QTH-DP-RA
Canonical Name: Samtec QTH-060-02-L-D-A .5mm High-Speed Ground Plane SMT Header Connector, 120 Position, 2 Row, 0.50mm Pitch, Gold Contact Finish, 8mm Stacking Height
Subcategory: Mezzanine Connector

QTH-060-02-L-D-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

QTH-060-02-L-D-A Estimated Pricing

Qty Low High
1+ $6.49 $6.49
64+ $4.99 $4.99
128+ $4.68 $4.68
256+ $4.30 $4.30
512+ $4.21 $4.21
1,024+ $4.09 $4.09

Estimated market price range - modelled values for guidance only, not live distributor offers.

QTH-060-02-L-D-A Features

  • 120 positions in 2 rows at 0.50mm pitch.
  • Gold contact finish with 10.0µin thickness.
  • 8mm mated stacking height for mezzanine designs.
  • Includes board guide and ground bus plane features.
  • Surface mount packaging for automated assembly.

QTH-060-02-L-D-A Applications

  • Ideal for high-speed mezzanine board-to-board connections.
  • Suitable for SATA 3.0 and SAS 3.0 protocol applications.
  • Used in compact electronic systems requiring dense interconnects.
  • Designed for PCIe 4.0 capable high-speed digital systems.

QTH-060-02-L-D-A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the QTH-060-02-L-D-A connector?

The pitch is 0.50mm (0.020").

How many positions does the QTH-060-02-L-D-A have?

It has 120 positions arranged in 2 rows.

What is the mounting type for this connector?

It is a surface mount (SMT) connector.

What is the mated stacking height of the QTH-060-02-L-D-A?

The mated stacking height is 8mm.

What contact finish does the QTH-060-02-L-D-A have?

The contact finish is Gold with a thickness of 10.0µin (0.25µm).

What features are included on the QTH-060-02-L-D-A connector?

It includes a board guide and a ground bus (plane).

What is the height above board for this connector?

The height above board is 0.286" (7.26mm).
