| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating (Nominal @ 1 ground plane powered) | |
| Current Rating (Nominal @ 2 Pins Powered) | |
| Features | |
| Halogen Free | |
| Height Above Board | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Lead-Free Solderable | |
| Mated Stacking Heights | |
| Maximum Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Packaging Type | |
| Pitch | |
| SMT Lead Coplanarity | |
| Standard Package Quantity | |
| Tape & Reel | |
| Voltage Rating |

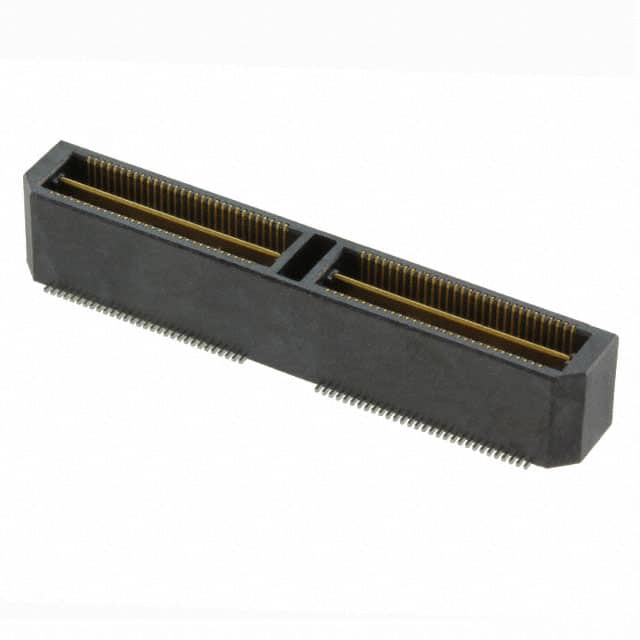

The Samtec QTH-060-02-F-D-A is a high-speed ground plane SMT header connector from the Q Pairs family. It features 120 positions arranged in 2 rows with a 0.50mm pitch, designed for dense board-to-board mezzanine applications. The connector uses gold flash contact finish over phosphor bronze contacts and a liquid crystal polymer insulator.
Electrical ratings include 2A per pin (2 pins powered) and 25A per ground plane, with a voltage rating of 175 VAC at 5mm stack height. The operating temperature range is -55°C to +125°C, and it supports up to 100 mating cycles. The mated stack height is 8mm with lead style -02.
This connector is surface mount with SMT lead coplanarity of 0.10mm max. It is lead-free solderable and comes in tray packaging with a standard quantity of 64. The integrated ground bus plane enhances signal integrity for high-speed differential pair protocols up to 14 Gbps NRZ.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.74 | $6.74 |
| 64+ | $5.18 | $5.18 |
| 128+ | $4.85 | $4.85 |
| 256+ | $4.64 | $4.64 |
| 512+ | $4.55 | $4.55 |
| 1,024+ | $4.26 | $4.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
120 positions in 2 rows.
0.50mm (0.020").
2A per pin (2 pins powered) and 25A per ground plane.
175 VAC at 5mm stack height.
Surface mount (SMT).
-55°C to +125°C.
8mm.
