Mfr Part #:

QTH-060-01-L-D-A

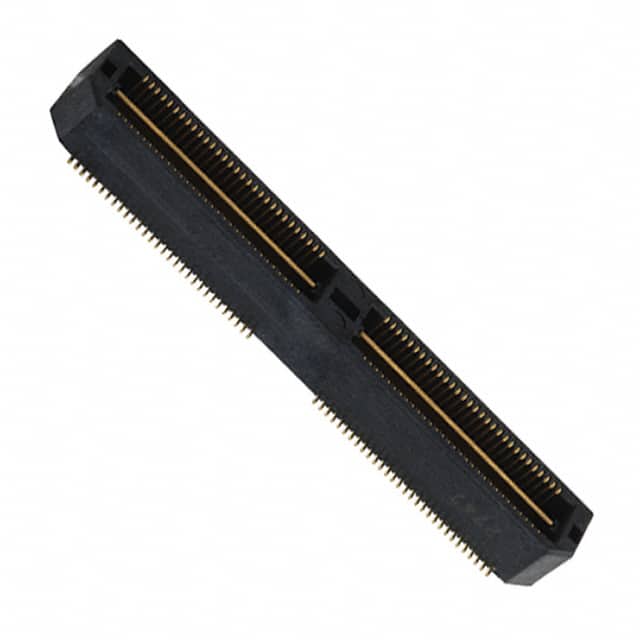

Samtec QTH-060-01-L-D-A is a 120-position, 2-row header with outer shroud contacts. It features a 0.50 mm pitch, surface mount termination, gold contact finish, and a mated stacking height of 5 mm.

✓ Total Stock: 28 pcs

$ Price Range: $4.41 - $7.88

QTH-060-01-L-D-A Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	26 pcs On Request	26 pcs	On Request	1	On Request	On Request	00+	On Request	On Request
Emiteli ✓ Non-Authorised Inventory information	2 pcs On Request	2 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

QTH-060-01-L-D-A Description

Short technical summary and product information.

The QTH-060-01-L-D-A from Samtec Inc. is a high-density array connector designed for board-to-board mezzanine applications. This connector offers 120 positions arranged in two rows with a fine 0.50 mm pitch, enabling compact interconnection in space-constrained designs.

The connector features a header with outer shroud contacts and gold plating (10.0 µin / 0.25 µm) for reliable signal integrity and corrosion resistance. The surface mount termination simplifies assembly and supports automated pick-and-place processes.

Mechanically, the connector has a height above board of 4.06 mm and supports a mated stacking height of 5 mm. It includes a board guide and ground bus (plane) features for alignment and enhanced grounding. This component is RoHS3 compliant (unverified) and rated MSL level 1 (unverified).

QTH-060-01-L-D-A Quick Information

Product Type: Array Connector

Series: QTH-060

Canonical Name: QTH-060-01-L-D-A Header, Outer Shroud Contacts Connector

Subcategory: Mezzanine Connector

QTH-060-01-L-D-A Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

QTH-060-01-L-D-A Estimated Pricing

Qty	Low	High
1+	$7.88	$7.88
48+	$6.06	$6.06
144+	$5.48	$5.48
288+	$4.96	$4.96
528+	$4.62	$4.62
1,056+	$4.41	$4.41

Estimated market price range - modelled values for guidance only, not live distributor offers.

QTH-060-01-L-D-A Features

120 positions in dual row layout.
0.50 mm fine pitch connector.
Surface mount termination for SMT assembly.
Gold contact finish for reliable connections.
Board guide and ground plane features.

QTH-060-01-L-D-A Applications

Mezzanine board-to-board stacking applications.
High-density interconnection in compact electronics.
Digital signal routing requiring low profile.
Systems needing integrated ground plane.

QTH-060-01-L-D-A FAQs

6 frequently asked questions generated from this part’s specifications.

How many positions does the QTH-060-01-L-D-A have?

It has 120 positions arranged in 2 rows.

What is the pitch of this connector?

The pitch is 0.50 mm (0.020 in).

What is the mounting type?

It is surface mount (SMT).

What contact finish is used?

Gold, with a thickness of 10.0 µin (0.25 µm).

What is the mated stacking height?

The stacking height is 5 mm.

Does it have any special features?

Yes, it includes a board guide and ground bus (plane).

Category	Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Name	Samtec Inc.
Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Features	Board Guide, Ground Bus (Plane)
Height Above Board	0.160" (4.06mm)
Lead Spacing	0.5 mm
Lead Style	Gold
Mated Stacking Heights	5mm
Mounting Type	Surface Mount
Number of Positions	120
Number of Rows	2
Pitch	0.50mm (0.020")
