| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,245 pcs
|
5245 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

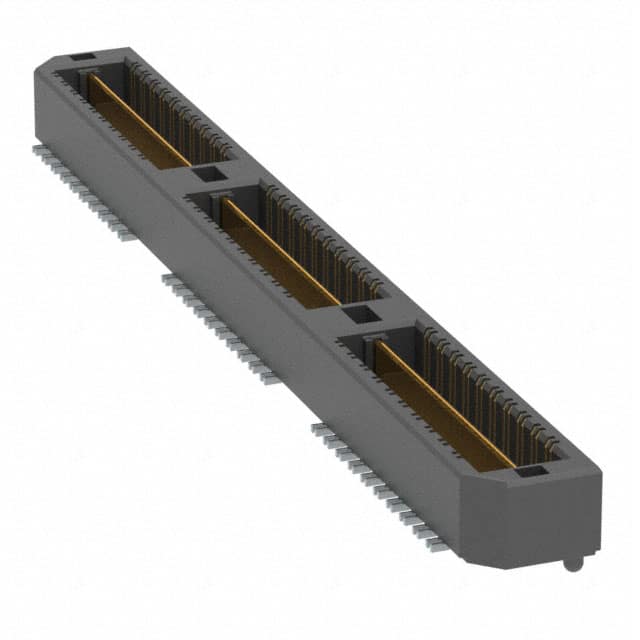

The Samtec QTH-060-01-F-D-DP-A-K is a differential pair array male connector designed for high-speed board-to-board mezzanine applications. It features 120 positions arranged in 2 rows with a 0.50mm pitch, enabling dense signal routing in compact designs.
The connector is surface mount compatible and has a mated stacking height of 5mm. Contacts are finished with 3.00µin gold for reliable conductivity. The part includes a board guide, ground bus (plane), and pick-and-place features to simplify automated assembly.
This connector is suitable for applications requiring differential pair signal integrity in a small footprint. The gold contact finish and ground plane support consistent electrical performance in high-frequency environments.
| Qty | Low | High |
|---|---|---|
| 42+ | $13.04 | $13.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
120 positions.
0.50mm (0.020").
Surface mount.
Gold, 3.00µin (0.076µm).
5mm.
