| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
73 pcs
|
73 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Plating | |
| Features | |
| Height Above Board | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Termination Style | |
| Voltage Rating |

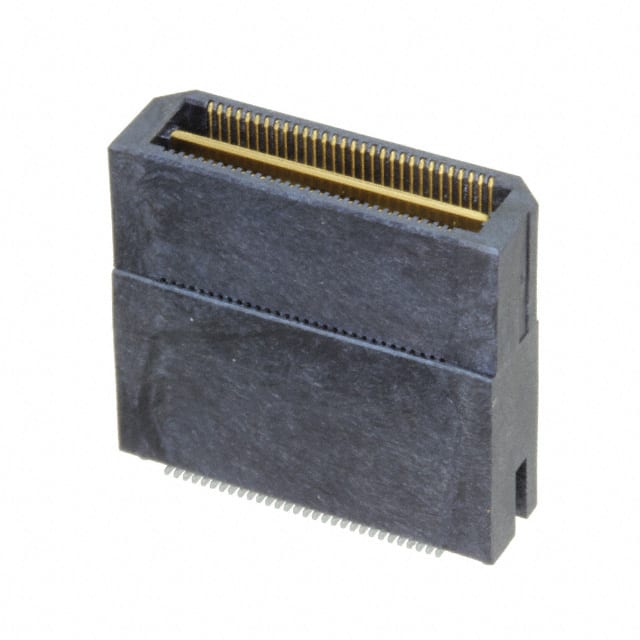

The Samtec QTH-030-05-F-D-A is a 60 position, 0.50mm pitch surface mount header with outer shroud contacts from the QTH series. This connector is designed for mezzanine (board-to-board) applications requiring a compact, high-density interconnect solution.
Key specifications include a dual-row configuration with 60 total positions, gold flash contact finish (3.00µin) over 50µ" nickel, and a mated stacking height of 19mm. The insulator is molded from liquid crystal polymer, and contacts are phosphor bronze. The connector is rated for 2A per pin (2 pins powered) and 175 VAC at 5mm stack height, with an operating temperature range of -55°C to +125°C.
The part includes a board guide and ground bus (plane) features. It is lead-free solderable and RoHS3 compliant. The -05 lead style provides a board-to-board spacing of 18.24mm above board.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.78 | $12.78 |
| 10+ | $12.41 | $12.41 |
| 25+ | $12.09 | $12.09 |
| 50+ | $11.51 | $11.51 |
| 100+ | $10.47 | $10.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.50mm (0.020")
60 positions in a dual-row configuration.
2A per pin (2 pins powered).
175 VAC at 5mm stack height.
Surface mount (SMD).
-55°C to +125°C.
19mm.
