| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
66 pcs
|
66 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

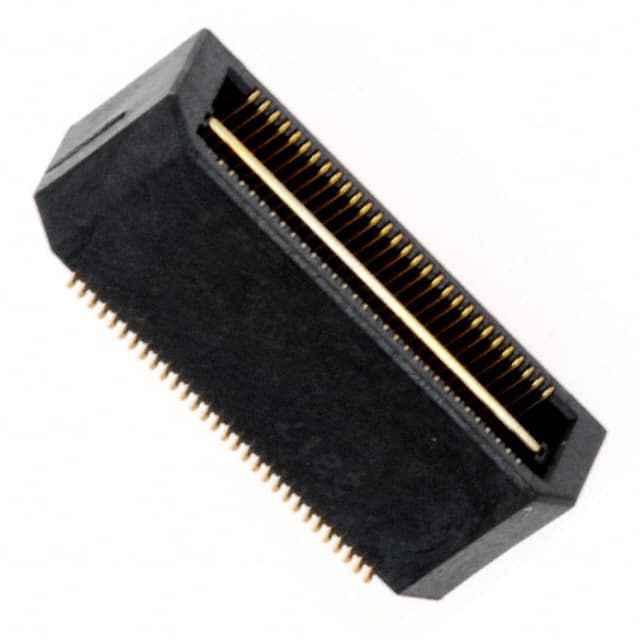

The QTH-030-02-F-D-A-K is a 60-position, 2-row, 0.50mm pitch header connector from Samtec's QTH series. It is designed for mezzanine board-to-board applications with a mated stacking height of 8mm. The connector features gold contact finish with 3µin thickness and includes board guide, ground bus plane, and pick-and-place features for automated assembly. Mounting type is surface mount.
This connector is part of the QTH series, which offers differential pair array configurations for high-speed signal transmission. The 60 positions are arranged in two rows, providing a compact interconnect solution. The outer shroud contacts ensure reliable mating and alignment. The ground bus plane feature aids in signal integrity and EMI shielding. The board guide assists in alignment during mating. The pick-and-place feature facilitates automated placement. Compliance: RoHS3 compliant, REACH unaffected, MSL Level 1 Unlimited (all unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
| 65+ | $4.66 | $4.66 |
| 130+ | $4.37 | $4.37 |
| 260+ | $4.01 | $4.01 |
| 520+ | $3.92 | $3.92 |
| 1,040+ | $3.71 | $3.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions.
0.50mm.
Surface mount.
8mm.
Gold with 3µin thickness.
Board guide, ground bus (plane), and pick-and-place.
2 rows.
