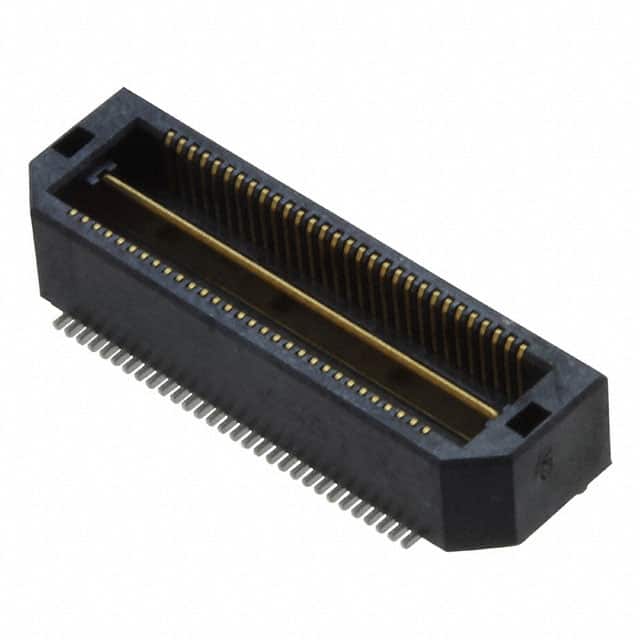

QTH-030-01-L-D-A-K-TR Samtec QTH-030-01-L-D-A-K-TR is a 60 position, 2 row, 0.50mm pitch surface mount header outer shroud contacts connector with gold contact finish.
Mfr Part #:

QTH-030-01-L-D-A-K-TR

Available from 3 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec QTH-030-01-L-D-A-K-TR is a 60 position, 2 row, 0.50mm pitch surface mount header outer shroud contacts connector with gold contact finish.
✓ Total Stock: 2,053 pcs

QTH-030-01-L-D-A-K-TR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
46 pcs
On Request
46 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QTH-030-01-L-D-A-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Packaging Type
Pitch
SVHC Present
Tape & Reel
Termination Style
View Similar Products (0)

QTH-030-01-L-D-A-K-TR Description

Short technical summary and product information.

The Samtec QTH-030-01-L-D-A-K-TR is a 60 position, 2 row header outer shroud contacts connector designed for board-to-board mezzanine applications. It features a 0.50mm pitch and a surface mount termination style, making it suitable for high-density interconnects. The connector includes a board guide, ground bus plane, and pick and place features for automated assembly. The contacts are finished with 0.25µm gold plating, ensuring reliable signal integrity. The connector has a height above board of 4.06mm and supports a mated stacking height of 5mm. It is supplied in tape and reel packaging for efficient manufacturing processes.

QTH-030-01-L-D-A-K-TR Quick Information

Product Type: Header Outer Shroud Contacts Connector
Series: QTH
Canonical Name: Samtec QTH Series 60 Position 0.50mm Pitch Surface Mount Header Outer Shroud Contacts Connector
Subcategory: Arrays, Edge Type, Mezzanine (Board to Board)

QTH-030-01-L-D-A-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

QTH-030-01-L-D-A-K-TR Features

  • 60 position, 2 row connector.
  • 0.50mm pitch for high density.
  • Gold contact finish 0.25µm.
  • Surface mount with pick and place.
  • Board guide and ground bus plane.

QTH-030-01-L-D-A-K-TR Applications

  • Board-to-board mezzanine interconnects.
  • High-density signal routing applications.
  • Automated surface mount assembly lines.
  • Systems requiring ground plane integration.

QTH-030-01-L-D-A-K-TR FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the QTH-030-01-L-D-A-K-TR have?

60 positions in 2 rows.

What is the pitch of this connector?

0.50mm (0.020").

What is the mounting type?

Surface mount.

What is the contact finish?

Gold, 0.25µm thickness.

What is the height above board?

4.06mm (0.160").

What is the mated stacking height?

5mm.
