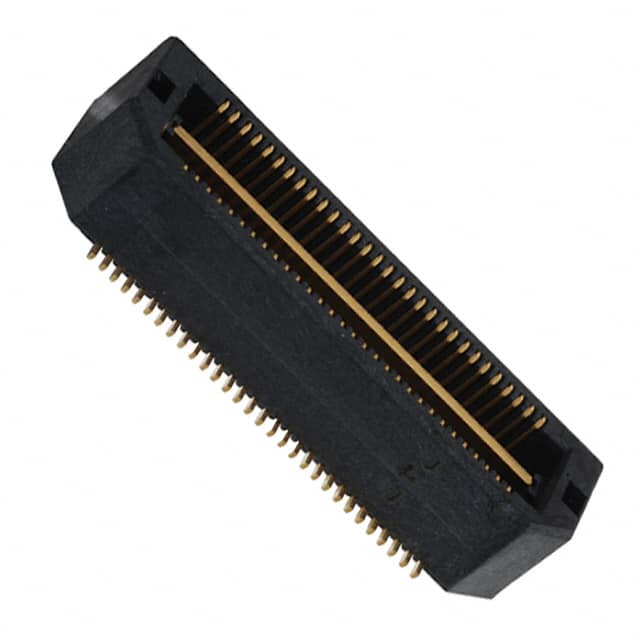

QTH-030-01-L-D-A Samtec QTH-030-01-L-D-A is a 60 position, 0.50mm pitch surface mount header with outer shroud contacts and gold plating.
Mfr Part #:

QTH-030-01-L-D-A

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec QTH-030-01-L-D-A is a 60 position, 0.50mm pitch surface mount header with outer shroud contacts and gold plating.
✓ Total Stock: 5 pcs
$ Price Range: $3.70 - $6.50

QTH-030-01-L-D-A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QTH-030-01-L-D-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
View Similar Products (0)

QTH-030-01-L-D-A Description

Short technical summary and product information.

The Samtec QTH-030-01-L-D-A is a 60-position, 0.50mm pitch header with outer shroud contacts, designed for surface mount mezzanine board-to-board applications. This connector features two rows of 30 contacts per row, with a height above board of 4.06mm and a mated stacking height of 5mm.



The contacts are finished with 0.25µm (10.0µin) of gold, ensuring reliable signal integrity. The connector includes a board guide and a ground bus (plane) for enhanced mechanical stability and grounding. It is RoHS3 compliant and has an MSL rating of 1 (unlimited).

QTH-030-01-L-D-A Quick Information

Product Type: Header, Outer Shroud Contacts
Series: QTH
Canonical Name: Samtec QTH-030-01-L-D-A 60 Position 0.50mm Pitch Surface Mount Header, Outer Shroud Contacts
Subcategory: Arrays, Edge Type, Mezzanine (Board to Board)

QTH-030-01-L-D-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

QTH-030-01-L-D-A Estimated Pricing

Qty Low High
1+ $6.50 $6.50
96+ $5.00 $5.00
288+ $4.47 $4.47
576+ $4.36 $4.36
1,056+ $4.04 $4.04
2,592+ $3.70 $3.70

Estimated market price range - modelled values for guidance only, not live distributor offers.

QTH-030-01-L-D-A Features

  • 60 positions with 0.50mm pitch spacing.
  • Two rows of 30 contacts each.
  • Gold contact finish for reliable connections.
  • Surface mount mounting type.
  • Includes board guide and ground bus plane.

QTH-030-01-L-D-A Applications

  • Mezzanine board-to-board interconnections.
  • High-density signal routing applications.
  • Compact electronic device assemblies.

QTH-030-01-L-D-A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the QTH-030-01-L-D-A?

The pitch is 0.50mm (0.020").

How many positions does the QTH-030-01-L-D-A have?

It has 60 positions arranged in 2 rows of 30 contacts per row.

What is the mounting type for this connector?

The mounting type is Surface Mount.

What is the contact finish on the QTH-030-01-L-D-A?

The contact finish is Gold with a thickness of 10.0µin (0.25µm).

What is the height above board for this connector?

The height above board is 0.160" (4.06mm).

What is the mated stacking height for the QTH-030-01-L-D-A?

The mated stacking height is 5mm.

What features does the QTH-030-01-L-D-A include?

It includes a Board Guide and Ground Bus (Plane).
