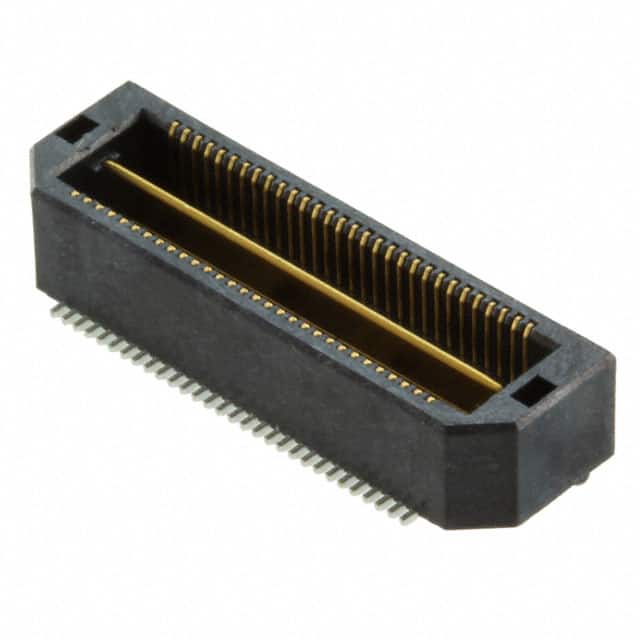

QTH-030-01-F-D-A Samtec QTH-030-01-F-D-A is a 60-position, 0.5mm pitch, surface mount header connector for board-to-board stacking. It features gold contact finish, board guide, and ground bus plane.
Mfr Part #:

QTH-030-01-F-D-A

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec QTH-030-01-F-D-A is a 60-position, 0.5mm pitch, surface mount header connector for board-to-board stacking. It features gold contact finish, board guide, and ground bus plane.
✓ Total Stock: 9 pcs
$ Price Range: $3.60 - $5.67

QTH-030-01-F-D-A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request 02+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QTH-030-01-F-D-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
View Similar Products (0)

QTH-030-01-F-D-A Description

Short technical summary and product information.

The Samtec QTH-030-01-F-D-A is a 60-position, 2-row mezzanine connector with a 0.50mm pitch. It is designed for board-to-board stacking applications where high density and reliable signal integrity are required.



The connector uses surface mount mounting technology and has a height above board of 4.06mm. The mated stacking height is 5mm, making it suitable for compact parallel PCB configurations. It includes a board guide for ease of alignment and a ground bus plane for improved grounding.



Contact finish is gold with a thickness of 0.076µm, ensuring good conductivity and corrosion resistance. The connector is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).

QTH-030-01-F-D-A Quick Information

Product Type: Mezzanine (Board to Board) Connector
Series: QTH
Canonical Name: Samtec QTH-030-01-F-D-A 60 Position 0.5mm Pitch Surface Mount Header Connector
Subcategory: Header, Outer Shroud Contacts

QTH-030-01-F-D-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

QTH-030-01-F-D-A Estimated Pricing

Qty Low High
1+ $5.67 $5.67
96+ $4.36 $4.36
288+ $3.89 $3.89
576+ $3.79 $3.79
1,056+ $3.60 $3.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

QTH-030-01-F-D-A Features

  • 60-position, 2-row, 0.5mm pitch connector.
  • Surface mount with 4.06mm height above board.
  • Gold contact finish with 0.076µm thickness.
  • Includes board guide and ground bus plane.
  • Mated stacking height of 5mm.

QTH-030-01-F-D-A Applications

  • Used for board-to-board stacking in compact electronics.
  • Ideal for high-density signal routing applications.
  • Suitable for mezzanine card configurations.
  • Common in data communication and server equipment.

QTH-030-01-F-D-A FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the QTH-030-01-F-D-A have?

60 positions in 2 rows.

What is the pitch of this connector?

0.50mm.

What is the mounting type?

Surface mount.

What is the contact finish?

Gold with thickness of 0.076µm.

What is the mated stacking height?

5mm.

Does the connector include a board guide or ground bus?

Yes, includes a board guide and a ground bus (plane).

What is the height above board?

4.06mm.
