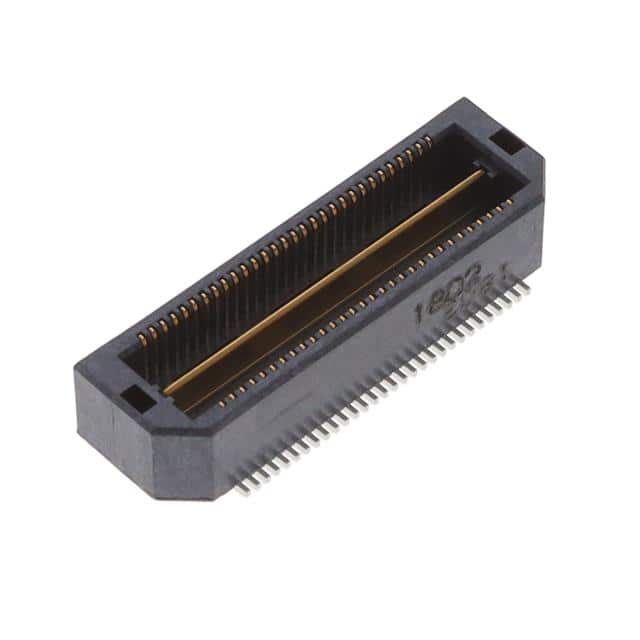

QTH-030-01-C-D-K-TR 60-position surface mount header with 0.50mm pitch and gold contact finish. Part of the QTH series by Samtec, designed for mezzanine (board to board) applications.
Mfr Part #:

QTH-030-01-C-D-K-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
60-position surface mount header with 0.50mm pitch and gold contact finish. Part of the QTH series by Samtec, designed for mezzanine (board to board) applications.
✓ Total Stock: 120 pcs
$ Price Range: $7.28 - $13.16

QTH-030-01-C-D-K-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
120 pcs
On Request
120 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QTH-030-01-C-D-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
View Similar Products (0)

QTH-030-01-C-D-K-TR Description

Short technical summary and product information.

The QTH-030-01-C-D-K-TR is a 60-position header connector from Samtec with outer shroud contacts. It features a 0.50mm pitch and 2 rows of contacts, surface mount termination, and a gold contact finish of 50.0µin (1.27µm). The connector has a height above board of 0.160" (4.06mm) and supports a mated stacking height of 5mm. It includes a ground bus (plane) for improved signal integrity and is designed for pick-and-place assembly. This connector is suitable for mezzanine (board to board) applications requiring high-density interconnects.

QTH-030-01-C-D-K-TR Quick Information

Product Type: Header, Outer Shroud Contacts
Canonical Name: Samtec QTH-030-01-C-D-K-TR — 60 Position Header, 0.50mm Pitch, Surface Mount, Gold Contact Finish
Subcategory: Mezzanine (Board to Board)

QTH-030-01-C-D-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 - Unlimited
REACH Status: REACH Unaffected

QTH-030-01-C-D-K-TR Estimated Pricing

Qty Low High
1+ $13.16 $13.16
10+ $11.18 $11.18
100+ $9.50 $9.50
575+ $7.66 $7.66
1,150+ $7.28 $7.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

QTH-030-01-C-D-K-TR Features

  • 60 positions in 2 rows with 0.50mm pitch.
  • Gold contact finish of 50.0µin (1.27µm).
  • Surface mount design with 0.160" (4.06mm) height above board.
  • Supports 5mm mated stacking height.
  • Includes ground bus plane and pick-and-place feature.

QTH-030-01-C-D-K-TR Applications

  • Used in mezzanine (board to board) interconnects.
  • Suitable for high-density signal routing in compact electronics.
  • Ideal for applications requiring a ground plane for signal integrity.
  • Can be used in automated pick-and-place assembly processes.

QTH-030-01-C-D-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the QTH-030-01-C-D-K-TR have?

60 positions arranged in 2 rows.

What is the pitch of the QTH-030-01-C-D-K-TR?

0.50mm (0.020").

What is the mounting type for the QTH-030-01-C-D-K-TR?

Surface mount.

What is the contact finish on the QTH-030-01-C-D-K-TR?

Gold, 50.0µin (1.27µm) thickness.

What is the height above board of the QTH-030-01-C-D-K-TR?

0.160" (4.06mm).

What is the mated stacking height for the QTH-030-01-C-D-K-TR?

5mm.

What special features does the QTH-030-01-C-D-K-TR include?

Ground bus (plane) and pick-and-place feature.
