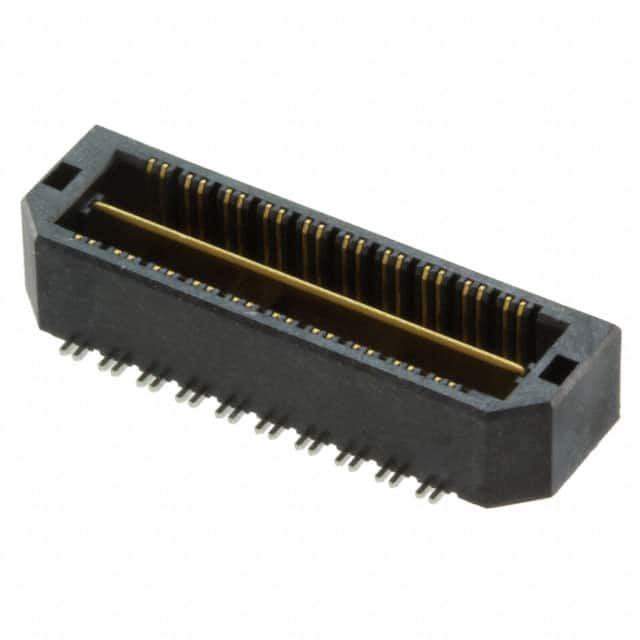

QTH-020-01-L-D-DP-A The Samtec QTH-020-01-L-D-DP-A is a 40-position differential pair array male connector with a 0.50mm pitch, designed for surface mount applications and a 5mm mated stacking height.
Mfr Part #:

QTH-020-01-L-D-DP-A

Available from 3 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec QTH-020-01-L-D-DP-A is a 40-position differential pair array male connector with a 0.50mm pitch, designed for surface mount applications and a 5mm mated stacking height.
✓ Total Stock: 162 pcs
$ Price Range: $6.72 - $11.35

QTH-020-01-L-D-DP-A Available from 3 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QTH-020-01-L-D-DP-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
View Similar Products (0)

QTH-020-01-L-D-DP-A Description

Short technical summary and product information.

The Samtec QTH-020-01-L-D-DP-A is a differential pair array male connector from the QTH series. It features 40 positions arranged in 2 rows with a fine 0.50mm pitch, making it suitable for high-density board-to-board interconnections. The connector is surface mount and has a mated stacking height of 5mm, ideal for mezzanine applications.



The contacts are finished with 10.0µin (0.25µm) of gold, ensuring reliable signal integrity and corrosion resistance. The connector includes a board guide and a ground bus (plane) feature to aid in alignment and provide a low-impedance ground path. The height above the board is 4.06mm.



This connector is designed for differential pair signaling and is RoHS3 compliant, with an MSL rating of 1 (unlimited). It is commonly used in applications requiring high-speed data transmission in a compact form factor.

QTH-020-01-L-D-DP-A Quick Information

Product Type: Differential Pair Array Connector
Series: QTH
Canonical Name: Samtec QTH Series Differential Pair Array Connector, Male, 40 Positions, 2 Rows, 0.50mm Pitch, Surface Mount, Gold Contact Finish
Subcategory: Arrays, Edge Type, Mezzanine (Board to Board)

QTH-020-01-L-D-DP-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

QTH-020-01-L-D-DP-A Estimated Pricing

Qty Low High
1+ $11.35 $11.35
96+ $8.72 $8.72
192+ $6.76 $6.76
480+ $6.72 $6.72

Estimated market price range - modelled values for guidance only, not live distributor offers.

QTH-020-01-L-D-DP-A Features

  • 40-position differential pair array male connector.
  • 0.50mm pitch for high-density board-to-board connections.
  • Surface mount with 5mm mated stacking height.
  • Gold contact finish (10.0µin) for reliable signal integrity.
  • Includes board guide and ground bus (plane) features.

QTH-020-01-L-D-DP-A Applications

  • Ideal for high-speed differential pair signaling.
  • Used in mezzanine board-to-board interconnections.
  • Suitable for compact electronic assemblies.
  • Designed for applications requiring a ground plane.

QTH-020-01-L-D-DP-A FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the QTH-020-01-L-D-DP-A have?

The connector has 40 positions.

What is the pitch of this connector?

The pitch is 0.50mm (0.020").

What is the mounting type for this part?

The mounting type is Surface Mount.

What is the mated stacking height?

The mated stacking height is 5mm.

What is the contact finish?

The contact finish is Gold with a thickness of 10.0µin (0.25µm).

What features does this connector include?

It includes a board guide and a ground bus (plane).
