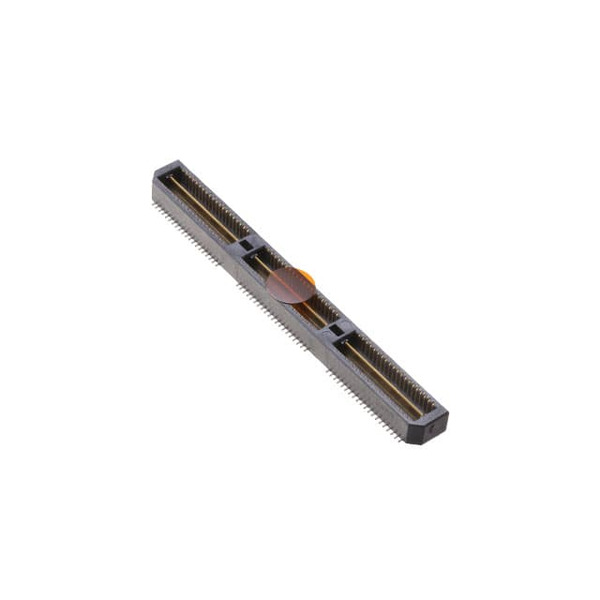

QTE-060-01-L-D-A-K The Samtec Inc. QTE-060-01-L-D-A-K is a 120-position connector header designed for board-to-board connections. It features a 0.80mm pitch and surface mountable design.
Mfr Part #:

QTE-060-01-L-D-A-K

Available from 1 distributors
Mfr Name: SMT
SMT
The Samtec Inc. QTE-060-01-L-D-A-K is a 120-position connector header designed for board-to-board connections. It features a 0.80mm pitch and surface mountable design.
✓ Total Stock: 194 pcs

QTE-060-01-L-D-A-K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
194 pcs
On Request
194 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QTE-060-01-L-D-A-K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Mounting Type
Number of Positions
Number of Rows
Package / Case
Pitch
SVHC Present
View Similar Products (0)

QTE-060-01-L-D-A-K Description

Short technical summary and product information.

The Samtec Inc. QTE-060-01-L-D-A-K is a high-density connector header with 120 positions, designed for surface mount applications. It belongs to Samtec's Q Strip® QTE series, known for high-speed signal integrity.



This connector features a pitch of 0.031 inches (0.80mm) and has two rows of contacts. The mated stacking height is 5mm, with a height above the board of 0.168 inches (4.27mm). The contacts are gold-plated with a thickness of 10.0µin (0.25µm) for enhanced conductivity and corrosion resistance.



Key features include a board guide, ground bus (plane), and pick and place capability, making it suitable for automated assembly. The connector also incorporates an outer shroud for improved mechanical stability and contact protection. It is supplied in Tape & Reel packaging.



This connector is suitable for compact electronic devices requiring reliable board-to-board connections with good signal integrity. The gold plating and ground bus contribute to performance and noise reduction.

QTE-060-01-L-D-A-K Quick Information

Product Type: Connector Header
Series: QTE
Canonical Name: Samtec Inc. QTE-060-01-L-D-A-K Connector Header
Subcategory: Header

QTE-060-01-L-D-A-K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

QTE-060-01-L-D-A-K Features

  • 120 positions for high-density connections.
  • 0.80mm pitch for compact designs.
  • Surface mount design for automated assembly.
  • Gold-plated contacts for reliable conductivity.
  • 5mm mated stacking height.

QTE-060-01-L-D-A-K Applications

  • Board-to-board connections.
  • Compact electronic devices.
  • High-speed signal applications.
  • Automated assembly processes.

QTE-060-01-L-D-A-K FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions on the QTE-060-01-L-D-A-K?

120 positions.

What is the pitch of this connector?

0.80mm

What is the mounting type?

Surface Mount

How many rows does this header have?

2 rows

What is the contact finish?

Gold with 0.25µm thickness

What is the mated stacking height?

5mm

What features does this connector include?

Board guide, ground bus (plane), and pick-and-place
