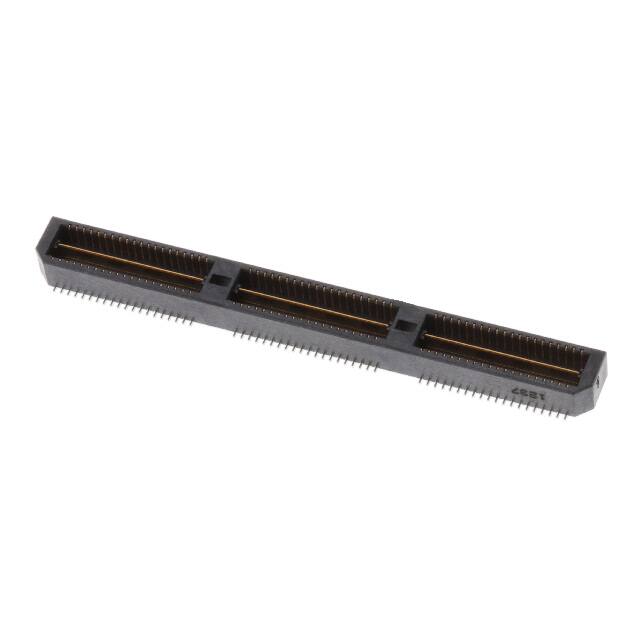

QTE-060-01-F-D-A Samtec QTE-060-01-F-D-A is a 120-position, 2-row header connector with 0.80mm pitch, surface mount, gold contact finish, and 5mm mated stacking height.
Mfr Part #:

QTE-060-01-F-D-A

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec QTE-060-01-F-D-A is a 120-position, 2-row header connector with 0.80mm pitch, surface mount, gold contact finish, and 5mm mated stacking height.
✓ Total Stock: 2,524 pcs
$ Price Range: $9.09 - $12.61

QTE-060-01-F-D-A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,524 pcs
On Request
2524 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QTE-060-01-F-D-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Current Rating (Nominal @ 1 ground plane powered)
Current Rating (Nominal @ 2 Pins Powered)
Features
Height Above Board
Insulator Material
Lead Spacing
Lead Style
Lead-Free Solderable
Mated Stacking Heights
Max Cycles
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Packaging Options
Pitch
Plating
SMT Lead Coplanarity
Voltage Rating
View Similar Products (0)

QTE-060-01-F-D-A Description

Short technical summary and product information.

The Samtec QTE-060-01-F-D-A is a high-density header connector from the QTE series, designed for mezzanine board-to-board applications. It features 120 positions arranged in 2 rows with a 0.80mm pitch, enabling compact and reliable interconnections. The connector uses surface mount technology and gold contact finish (3.00µin) over phosphor bronze contacts, ensuring excellent conductivity and durability.



Electrical ratings include 2A per pin (contact) and 23A per ground plane, with a voltage rating of 225 VAC at the specified 5mm mated stacking height. The operating temperature range spans -55°C to +125°C, making it suitable for demanding environments. The insulator is made of liquid crystal polymer (LCP), and the connector includes a board guide and ground bus plane for enhanced alignment and signal integrity.



Packaging options include tray (standard), tape & reel (-TR), and full reel tape & reel (-FR). The connector is lead-free solderable and has an SMT lead coplanarity of 0.10mm max. It is designed for applications requiring high pin count and low profile stacking.

QTE-060-01-F-D-A Quick Information

Product Type: Header, Outer Shroud Contacts
Series: QTE
Canonical Name: Samtec QTE Series Header, Outer Shroud Contacts, 120 Positions, 2 Rows, 0.80mm Pitch, Surface Mount, Gold Contact Finish
Subcategory: Mezzanine (Board to Board)

QTE-060-01-F-D-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

QTE-060-01-F-D-A Estimated Pricing

Qty Low High
1+ $12.61 $12.61
42+ $9.69 $9.69
84+ $9.34 $9.34
126+ $9.09 $9.09

Estimated market price range - modelled values for guidance only, not live distributor offers.

QTE-060-01-F-D-A Features

  • 120 positions in 2 rows.
  • 0.80mm pitch for high density.
  • Surface mount with gold contacts.
  • 5mm mated stacking height.
  • Includes board guide and ground plane.

QTE-060-01-F-D-A Applications

  • Mezzanine board-to-board connections.
  • High-density signal interconnects.
  • Applications requiring ground plane.
  • Stacking heights up to 5mm.

QTE-060-01-F-D-A FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the QTE-060-01-F-D-A have?

120 positions in 2 rows.

What is the pitch of this connector?

0.80mm (0.031").

What is the current rating per contact?

2 A per pin (2 pins powered).

What is the voltage rating?

225 VAC when mated at 5mm stack height.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-55°C to +125°C.

What contact finish is used?

Gold, 3.00µin thickness.
