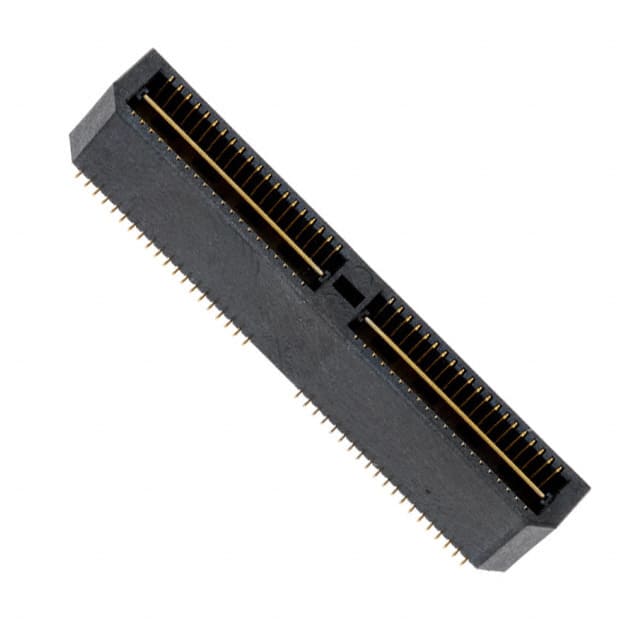

QTE-040-02-L-D-A Samtec QTE-040-02-L-D-A is an 80 position, 2-row, 0.80mm pitch header with outer shroud contacts, designed for surface mount soldering. It features gold contact finish and a mated stacking height of 8mm.
Mfr Part #:

QTE-040-02-L-D-A

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec QTE-040-02-L-D-A is an 80 position, 2-row, 0.80mm pitch header with outer shroud contacts, designed for surface mount soldering. It features gold contact finish and a mated stacking height of 8mm.
✓ Total Stock: 1 pcs
$ Price Range: $9.29 - $12.19

QTE-040-02-L-D-A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request 10+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QTE-040-02-L-D-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Termination Style
View Similar Products (0)

QTE-040-02-L-D-A Description

Short technical summary and product information.

The Samtec QTE-040-02-L-D-A is a high-density board-to-board connector from the QTE series. It features 80 positions arranged in 2 rows with a 0.80mm pitch, making it suitable for compact mezzanine stacking applications. The connector uses a header with outer shroud contacts and is terminated via surface mount soldering.



The connector has a gold contact finish with a thickness of 10.0µin (0.25µm), ensuring reliable electrical performance. It stands 7.26mm above the board and supports a mated stacking height of 8mm. Additional features include a board guide for alignment and a ground bus plane for improved signal integrity.



This connector is RoHS3 compliant, with an MSL rating of 1 (unlimited) and REACH unaffected status. It is designed for use in applications requiring high pin count and fine pitch in a surface mount package.

QTE-040-02-L-D-A Quick Information

Product Type: Board-to-Board Connector
Series: QTE
Canonical Name: Samtec QTE-040-02-L-D-A 80 Position Header, Outer Shroud Contacts, Surface Mount
Subcategory: Arrays, Edge Type, Mezzanine

QTE-040-02-L-D-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

QTE-040-02-L-D-A Estimated Pricing

Qty Low High
1+ $12.19 $12.19
64+ $9.38 $9.38
128+ $9.29 $9.29

Estimated market price range - modelled values for guidance only, not live distributor offers.

QTE-040-02-L-D-A Features

  • 80 positions in 2 rows.
  • 0.80mm pitch for high density.
  • Surface mount solder termination.
  • Gold contact finish 10µin.
  • Board guide and ground bus plane.

QTE-040-02-L-D-A Applications

  • Mezzanine board-to-board stacking.
  • High-density interconnect applications.
  • Surface mount PCB assembly.

QTE-040-02-L-D-A FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the QTE-040-02-L-D-A have?

80 positions arranged in 2 rows.

What is the pitch of this connector?

0.80mm (0.031 inches).

What is the mounting type?

Surface mount.

What is the contact finish?

Gold with a thickness of 10.0µin (0.25µm).

What is the height above board?

7.26mm.

What is the mated stacking height?

8mm.

What features does this connector include?

Board guide and ground bus (plane).
