| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

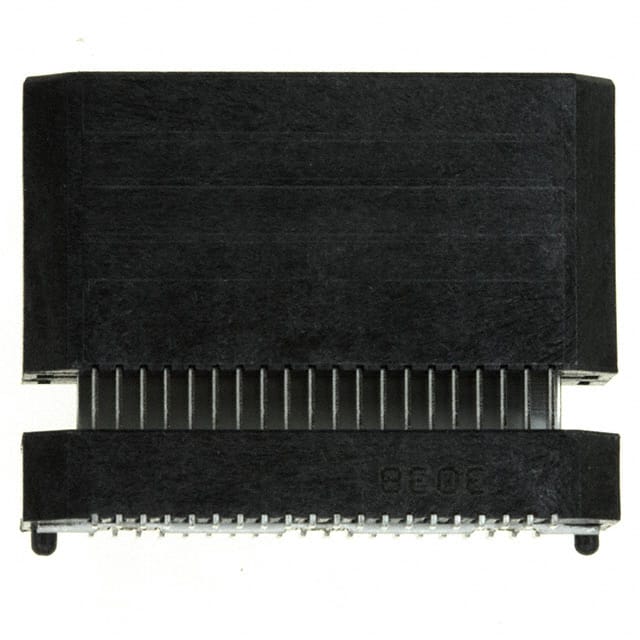

The Samtec QTE-020-04-L-D-A is a 40 position header connector featuring outer shroud contacts arranged in 2 rows on a 0.80mm pitch. Designed for surface mount soldering, this connector includes a board guide and ground bus plane for enhanced alignment and signal integrity. The contacts are finished with 10.0µin (0.25µm) gold plating, ensuring reliable low-resistance connections. With a height above board of 0.600" (15.24mm) and a mated stacking height of 16mm, this connector is suitable for mezzanine board-to-board applications. It is part of Samtec's QTE series and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.49 | $14.49 |
| 40+ | $11.14 | $11.14 |
| 80+ | $10.87 | $10.87 |
| 120+ | $8.32 | $8.32 |
| 240+ | $7.46 | $7.46 |
| 480+ | $6.03 | $6.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
40 positions arranged in 2 rows.
0.80mm (0.031").
Surface mount.
Gold with 10.0µin (0.25µm) thickness.
0.600" (15.24mm).
16mm.
