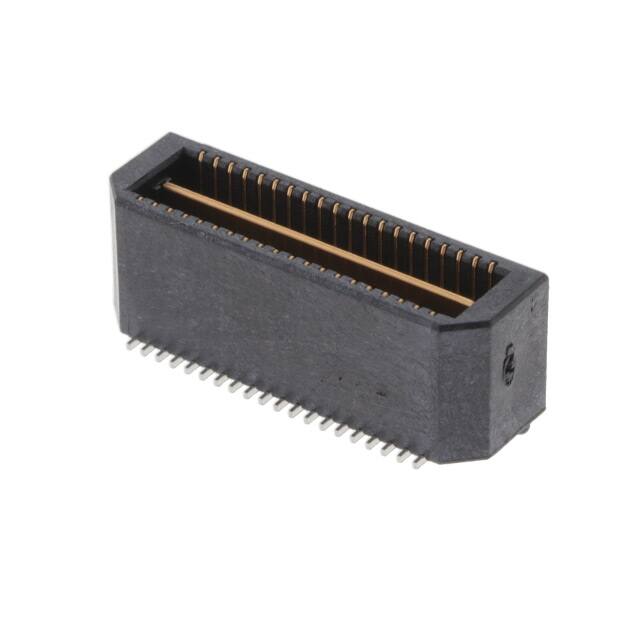

QTE-020-02-F-D-A-K-TR Samtec QTE series 40 position 0.80mm pitch surface mount header with outer shroud contacts. Features gold flash plating, board guide, ground plane, and pick and place pad.
Mfr Part #:

QTE-020-02-F-D-A-K-TR

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec QTE series 40 position 0.80mm pitch surface mount header with outer shroud contacts. Features gold flash plating, board guide, ground plane, and pick and place pad.
✓ Total Stock: 58 pcs
$ Price Range: $3.20 - $5.86

QTE-020-02-F-D-A-K-TR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
29 pcs
On Request
29 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
29 pcs
On Request
29 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QTE-020-02-F-D-A-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Current Rating
Features
Height Above Board
Insulator Material
Lead Spacing
Lead Style
Lead-Free Solderable
Mated Stacking Heights
Max Mating Cycles
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Other Options
Packaging Type
Pitch
Plating
Plating Option
SMT Lead Coplanarity
Type
Voltage Rating
View Similar Products (0)

QTE-020-02-F-D-A-K-TR Description

Short technical summary and product information.

The Samtec QTE-020-02-F-D-A-K-TR is a 40-position, 2-row, 0.80mm pitch surface mount header from the QTE series. It features outer shroud contacts with a gold flash finish on the contact and matte tin on the tail, over 50 µ" nickel underplating. The connector includes a board guide, a ground bus (plane), and a polyimide pick and place pad for automated assembly.



This header is rated for 2A per pin (with 2 pins powered) and 23A per ground plane (with 1 ground plane powered). The voltage rating is 225 VAC when mated at a 5mm stack height. The operating temperature range is -55°C to +125°C, and it is rated for 100 mating cycles.



The connector is designed for a mated stacking height of 8mm when paired with a QSE series receptacle. It is lead-free solderable and packaged in tape and reel for automated placement. The insulator is made of liquid crystal polymer, and the contacts are phosphor bronze.

QTE-020-02-F-D-A-K-TR Quick Information

Product Type: Header, Outer Shroud Contacts
Series: QTE
Canonical Name: Samtec QTE Series 40 Position 0.80mm Pitch Surface Mount Header, Outer Shroud Contacts
Subcategory: Arrays, Edge Type, Mezzanine (Board to Board)

QTE-020-02-F-D-A-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

QTE-020-02-F-D-A-K-TR Estimated Pricing

Qty Low High
1+ $5.86 $5.86
10+ $4.98 $4.98
25+ $4.67 $4.67
50+ $4.44 $4.44
100+ $4.23 $4.23
275+ $4.47 $4.47
550+ $4.02 $4.02
1,375+ $3.20 $3.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

QTE-020-02-F-D-A-K-TR Features

  • 40 position, 2 row, 0.80mm pitch SMT header.
  • Gold flash contact finish over nickel underplating.
  • Rated for 2A per pin and 23A per ground plane.
  • 225 VAC voltage rating at 5mm stack height.
  • Includes board guide, ground plane, and pick and place pad.

QTE-020-02-F-D-A-K-TR Applications

  • Mezzanine board-to-board stacking applications.
  • High-density signal and power interconnect designs.
  • Automated surface mount assembly with pick and place.

QTE-020-02-F-D-A-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the QTE-020-02-F-D-A-K-TR?

The pitch is 0.80mm (0.031").

How many positions does the QTE-020-02-F-D-A-K-TR have?

It has 40 positions arranged in 2 rows.

What is the current rating of the QTE-020-02-F-D-A-K-TR?

The current rating is 2A per pin (2 pins powered) and 23A per ground plane (1 ground plane powered).

What is the voltage rating of the QTE-020-02-F-D-A-K-TR?

The voltage rating is 225 VAC when mated at a 5mm stack height.

What is the mounting type for this connector?

The mounting type is surface mount.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

What is the mated stacking height of the QTE-020-02-F-D-A-K-TR?

The mated stacking height is 8mm.
