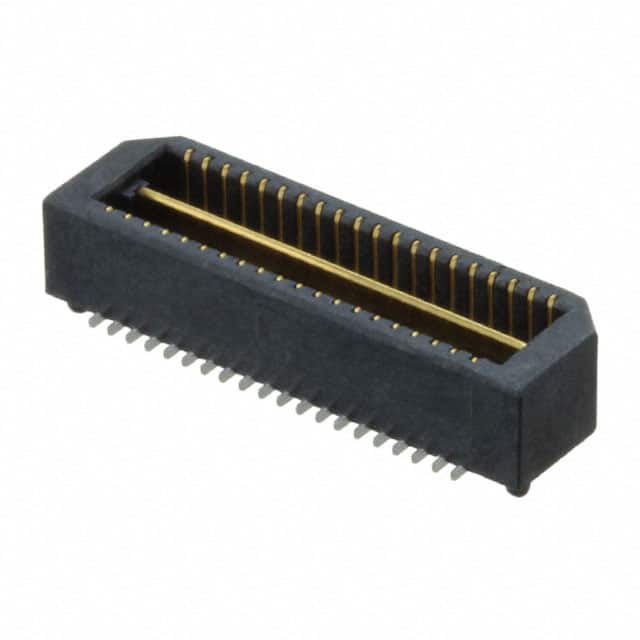

The Samtec QTE-020-01-F-D-A-K is a high-density mezzanine connector from the QTE series. It features 40 positions arranged in 2 rows with a 0.80mm pitch, designed for surface mount soldering. The connector uses phosphor bronze contacts with gold flash plating over 50 µ" nickel, ensuring reliable signal integrity.
Electrical ratings include 2A per pin (with 2 pins powered) and 23A per ground plane (with 1 ground plane powered). The voltage rating is 225 VAC when mated at a 5mm stack height. The operating temperature range spans -55°C to +125°C, suitable for demanding environments.
Mechanical features include a board guide, ground bus plane, and a polyimide film pick and place pad for automated assembly. The mated stacking height is 5mm. The insulator is made of liquid crystal polymer, and the connector is lead-free solderable with an SMT lead coplanarity of 0.10mm maximum.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.15 | $5.15 |
| 96+ | $3.96 | $3.96 |
| 192+ | $3.72 | $3.72 |
| 288+ | $3.55 | $3.55 |
| 576+ | $3.38 | $3.38 |
| 1,056+ | $3.24 | $3.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.80mm (0.031").
It has 40 positions arranged in 2 rows.
The contact current rating is 2A per pin (2 pins powered) and the ground plane current rating is 23A (1 ground plane powered).
The voltage rating is 225 VAC when mated at a 5mm stack height.
The mounting type is surface mount.
The operating temperature range is -55°C to +125°C.
The contact finish is gold flash (3.00 µin) over 50 µ" nickel.
