| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,300 pcs
|
1300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Length | |
| Load Capacitance | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Width |

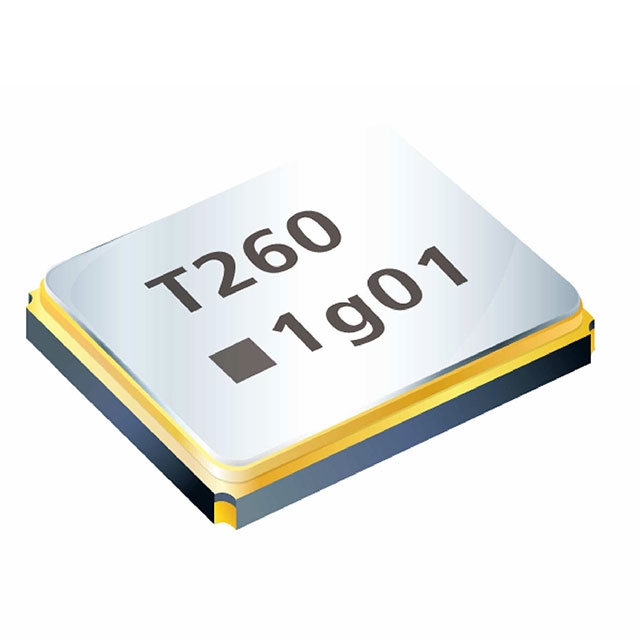

The QT325S-32.768MAAE-T is a fundamental mode MHz crystal from QST, designed for surface-mount applications. It operates at a nominal frequency of 32.768 MHz with a load capacitance of 12 pF. The crystal offers a frequency tolerance of ±30 ppm at 25°C and a frequency stability of ±30 ppm over the operating temperature range of -20°C to +70°C. The maximum equivalent series resistance (ESR) is 50 Ω, and the typical drive level is 100 μW. The shunt capacitance is 3 pF maximum, and aging is limited to ±3 ppm in the first year.
The crystal is housed in a compact 4-SMD, No Lead ceramic package measuring 3.20 mm x 2.50 mm with a height of 0.80 mm (datasheet specifies 0.70 mm). It is suitable for use in consumer electronics, cellular phones, pagers, displays, TVs, Bluetooth, and wireless LAN devices. The component is RoHS3 compliant and lead-free, and it is supplied in tape and reel packaging for automated assembly.
It comes in a 4-SMD, No Lead package with dimensions 3.20mm x 2.50mm and a height of 0.80mm.
-20°C to +70°C.
Yes, it is RoHS3 compliant and lead-free as stated in the datasheet.
32.768 MHz.
12 pF.
Maximum 50 Ω.
Surface mount (SMD).
