Mfr Part #:

QSH6018-86-28-310

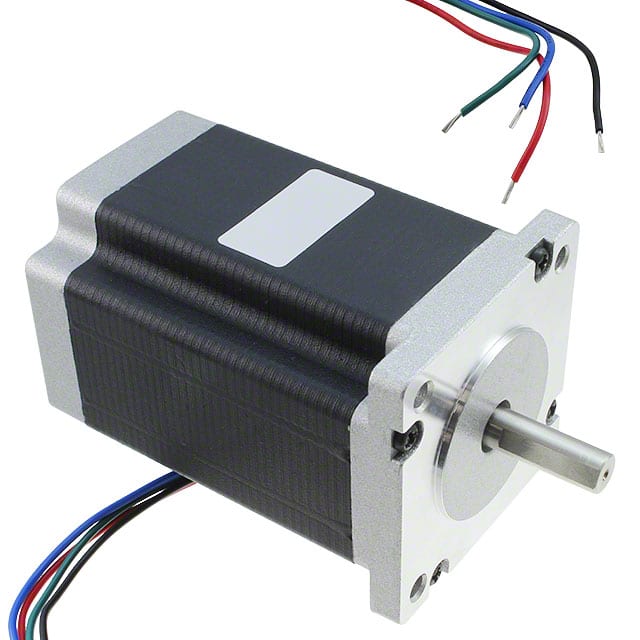

Name: QSH6018-86-28-310
Brand: Trinamic Motion Control GmbH
SKU: QSH6018-86-28-310

Description:

STEP MOTOR HYBRID BIPOLAR 4.17V

Stock on Request

QSH6018-86-28-310 Description

Short technical summary and product information.

STEP MOTOR HYBRID BIPOLAR 4.17V

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Stepper Motors
Manufacturer Name	Trinamic Motion Control GmbH
Accuracy	±5%
Coil Resistance	1.5 Ω
Coil Type	Bipolar
Current Rating (Amps)	2.8 A
Diameter	0.315" (8.00mm)
Features	Flatted Shaft
Length	0.945" (24.00mm)
Mounting Hole Spacing	1.856" (47.14mm)
NEMA Frame Size	24
Operating Temperature	-20°C ~ 50°C
Size	Square - 2.362" x 2.362" (60.00mm x 60.00mm)
Step Angle	1.8°
Steps per Revolution	200
Termination Style	Wire Leads
Torque	438.99 / 3100
Type	Hybrid
Voltage	4.17VDC
