Mfr Part #:

QSH5718-76-28-189

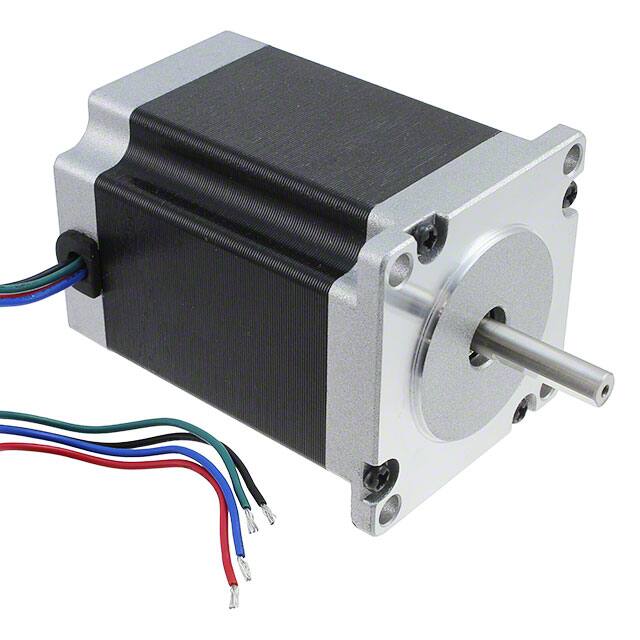

Name: QSH5718-76-28-189
Brand: Trinamic Motion Control GmbH
SKU: QSH5718-76-28-189

Description:

STEP MOTOR HYBRID BIPOLAR 3.2V

Stock on Request

QSH5718-76-28-189 Description

Short technical summary and product information.

STEP MOTOR HYBRID BIPOLAR 3.2V

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Stepper Motors
Manufacturer Name	Trinamic Motion Control GmbH
Accuracy	±5%
Coil Resistance	1.13 Ω
Coil Type	Bipolar
Current Rating (Amps)	2.8 A
Diameter	0.250" (6.35mm)
Features	Flatted Shaft
Length	0.945" (24.00mm)
Mounting Hole Spacing	1.856" (47.14mm)
NEMA Frame Size	23
Operating Temperature	-20°C ~ 50°C
Size	Square - 2.220" x 2.220" (56.40mm x 56.40mm)
Step Angle	1.8°
Steps per Revolution	200
Termination Style	Wire Leads
Torque	267.64 / 1890
Type	Hybrid
Voltage	3.2VDC
