Mfr Part #:

QSH2818-32-07-006-8K

Name: QSH2818-32-07-006-8K
Brand: Trinamic Motion Control GmbH
SKU: QSH2818-32-07-006-8K

Description:

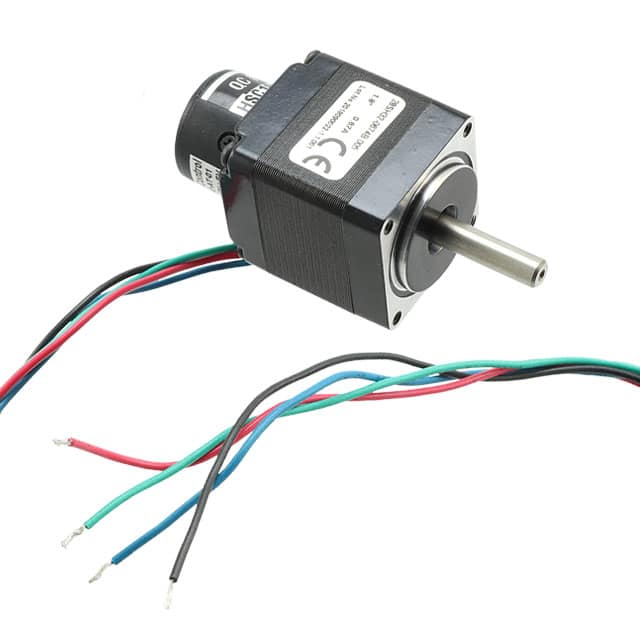

STEP MOTOR HYBRID NEMA11 ENC 819

Stock on Request

QSH2818-32-07-006-8K Description

Short technical summary and product information.

STEP MOTOR HYBRID NEMA11 ENC 819

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Stepper Motors
Manufacturer Name	Trinamic Motion Control GmbH
Accuracy	±5%
Coil Resistance	5.6 Ω
Coil Type	Bipolar
Current Rating (Amps)	670 mA
Diameter	0.197" (5.00mm)
Features	Flatted Shaft
Length	0.787" (20.00mm)
Mounting Hole Spacing	0.906" (23.00mm)
NEMA Frame Size	11
Operating Temperature	-20°C ~ 50°C
Size	Square - 1.100" x 1.100" (28.00mm x 28.00mm)
Step Angle	1.8°
Steps per Revolution	200
Termination Style	Wire Leads
Torque	8.49 / 60
Type	Hybrid
Voltage	3.8VDC
