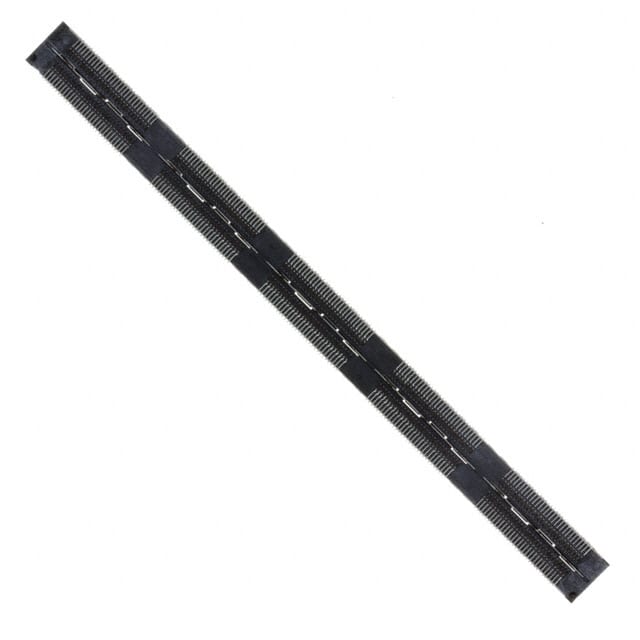

QSH-150-01-L-D-A-K Samtec QSH-150-01-L-D-A-K is a 300 position, 2 row, 0.50mm pitch surface mount receptacle connector with gold contact finish.
Mfr Part #:

QSH-150-01-L-D-A-K

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec QSH-150-01-L-D-A-K is a 300 position, 2 row, 0.50mm pitch surface mount receptacle connector with gold contact finish.
✓ Total Stock: 10 pcs
$ Price Range: $16.66 - $19.96

QSH-150-01-L-D-A-K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QSH-150-01-L-D-A-K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
View Similar Products (0)

QSH-150-01-L-D-A-K Description

Short technical summary and product information.

The Samtec QSH-150-01-L-D-A-K is a high-density receptacle connector featuring 300 positions arranged in 2 rows with a 0.50mm pitch. This surface mount connector is designed for mezzanine (board-to-board) applications and supports a range of mated stacking heights including 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, and 25mm.



The connector features gold contact finish with a thickness of 10.0µin (0.25µm) for reliable signal integrity. It includes a board guide, ground bus (plane), and pick and place features for automated assembly. The height above board is 3.25mm (0.128").



This component is part of Samtec's QSH series and is suitable for applications requiring high pin count interconnects in a compact form factor. The surface mount design facilitates efficient PCB assembly processes.

QSH-150-01-L-D-A-K Quick Information

Product Type: Receptacle Connector
Series: QSH-150
Canonical Name: Samtec QSH-150-01-L-D-A-K 300 Position 0.50mm Pitch Surface Mount Receptacle Connector
Subcategory: Arrays, Edge Type, Mezzanine (Board to Board)

QSH-150-01-L-D-A-K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

QSH-150-01-L-D-A-K Estimated Pricing

Qty Low High
1+ $19.96 $19.96
10+ $19.37 $19.37
25+ $18.87 $18.87
50+ $17.97 $17.97
100+ $16.66 $16.66

Estimated market price range - modelled values for guidance only, not live distributor offers.

QSH-150-01-L-D-A-K Features

  • 300 position, 2 row receptacle connector.
  • 0.50mm pitch for high density design.
  • Gold contact finish with 10.0µin thickness.
  • Supports multiple mated stacking heights.
  • Includes board guide and pick and place features.

QSH-150-01-L-D-A-K Applications

  • Ideal for mezzanine board-to-board connections.
  • Suitable for high pin count interconnects.
  • Used in compact electronic assemblies.

QSH-150-01-L-D-A-K FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the QSH-150-01-L-D-A-K have?

The QSH-150-01-L-D-A-K has 300 positions arranged in 2 rows.

What is the pitch of the QSH-150-01-L-D-A-K connector?

The pitch is 0.50mm (0.020").

What is the mounting type for this connector?

The mounting type is Surface Mount.

What contact finish does the QSH-150-01-L-D-A-K have?

The contact finish is Gold with a thickness of 10.0µin (0.25µm).

What mated stacking heights does this connector support?

The supported mated stacking heights are 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, and 25mm.

What features does the QSH-150-01-L-D-A-K include?

Features include Board Guide, Ground Bus (Plane), and Pick and Place.
