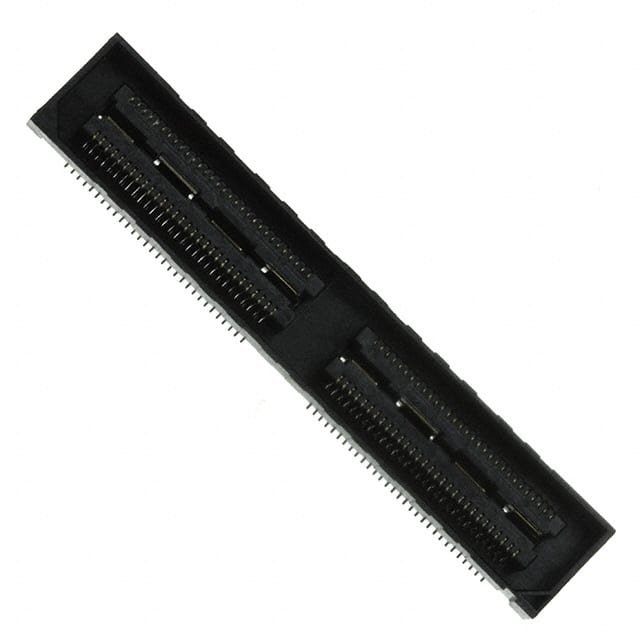

QSH-060-01-L-D-A Samtec QSH-060-01-L-D-A is a 120 position, 0.50mm pitch surface mount receptacle connector with gold plated contacts and a ground plane.
Mfr Part #:

QSH-060-01-L-D-A

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec QSH-060-01-L-D-A is a 120 position, 0.50mm pitch surface mount receptacle connector with gold plated contacts and a ground plane.
✓ Total Stock: 114 pcs
$ Price Range: $3.72 - $7.56

QSH-060-01-L-D-A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
OTL Components ✓
Non-Authorised Inventory information
114 pcs
On Request
114 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QSH-060-01-L-D-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Current Rating (Contact)
Current Rating (Ground Plane)
Features
Height Above Board
Insulator Material
Lead Spacing
Lead Style
Lead-Free Solderable
Mated Stacking Heights
Max Cycles
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
SMT Lead Coplanarity
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

QSH-060-01-L-D-A Description

Short technical summary and product information.

The Samtec QSH-060-01-L-D-A is a 120-position, 0.50mm pitch, surface mount receptacle connector designed for mezzanine (board-to-board) stacking applications. It features 2 rows of center strip contacts with gold plating on the contacts and a liquid crystal polymer insulator.



This connector supports multiple mated stacking heights including 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, and 25mm, providing flexibility for various board spacing requirements. It includes board guide and ground bus (plane) features for alignment and improved signal integrity. The ground plane can carry up to 25A, while each signal contact is rated for 2A (2 pins powered).



The QSH-060-01-L-D-A is available in tray packaging. It is lead-free solderable and has an operating temperature range of -55°C to +125°C. With a minimum of 100 mating cycles, it is suitable for high-reliability applications requiring frequent board stacking and unstacking.

QSH-060-01-L-D-A Quick Information

Product Type: Array Connector
Series: QSH
Canonical Name: QSH-060-01-L-D-A 120 Position 0.50mm Pitch Surface Mount Receptacle Connector
Subcategory: Mezzanine Connector

QSH-060-01-L-D-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

QSH-060-01-L-D-A Estimated Pricing

Qty Low High
1+ $7.56 $7.56
64+ $5.81 $5.81
128+ $5.47 $5.47
256+ $5.02 $5.02
512+ $4.75 $4.75
1,024+ $4.46 $4.46
2,560+ $3.72 $3.72

Estimated market price range - modelled values for guidance only, not live distributor offers.

QSH-060-01-L-D-A Features

  • 120 position, 0.50mm pitch, 2 rows.
  • Surface mount with gold plated contacts.
  • Ground plane rated for 25A continuous.
  • Supports 5mm to 25mm stacking heights.
  • Rated for 2A per signal pin.

QSH-060-01-L-D-A Applications

  • Board-to-board mezzanine connection in compact electronics.
  • High-density signal and power distribution.
  • Applications requiring multiple board stack heights.
  • Designs needing a ground plane for EMI reduction.

QSH-060-01-L-D-A FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the QSH-060-01-L-D-A have?

It has 120 positions in 2 rows.

What is the pitch of this connector?

The pitch is 0.50mm.

What is the current rating per contact?

Each contact is rated for 2A (2 pins powered). The ground plane is rated for 25A.

What is the voltage rating?

The voltage rating is 175 VAC at a 5mm stack height.

What mounting type does this connector use?

It is a surface mount connector.

What is the operating temperature range?

The operating temperature range is -55°C to +125°C.

What mated stacking heights are supported?

Mated stacking heights include 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, and 25mm.
