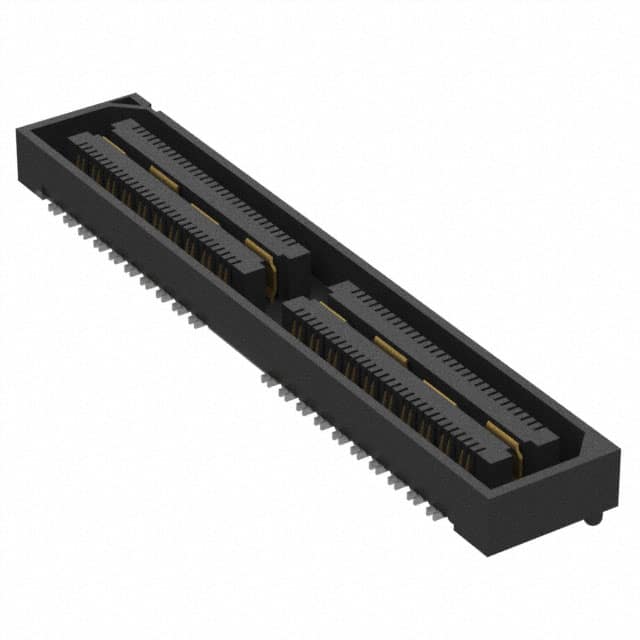

The QSH-040-01-L-D-DP-A-K-TR is a differential pair array receptacle from Samtec Inc. It features 80 positions arranged in 2 rows with a 0.50mm pitch, designed for high-density board-to-board connections. The connector uses a surface mount mounting style and gold contact finish with 10.0µin (0.25µm) thickness for reliable signal integrity.
This receptacle supports a range of mated stacking heights: 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, and 25mm, providing flexibility in mezzanine applications. The height above board is 0.128" (3.25mm). Additional features include a board guide for alignment, a ground bus (plane) for improved electrical performance, and a pick-and-place pad for automated assembly.
The connector is suitable for high-speed differential signal applications where controlled impedance and low crosstalk are critical. Its compact design and multiple stacking height options make it ideal for space-constrained electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.30 | $8.30 |
| 10+ | $7.05 | $7.05 |
| 25+ | $6.61 | $6.61 |
| 50+ | $6.29 | $6.29 |
| 100+ | $5.99 | $5.99 |
| 250+ | $5.73 | $5.73 |
| 500+ | $6.12 | $6.12 |
| 1,000+ | $5.23 | $5.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
80 positions.
0.50mm (0.020").
Surface mount.
Gold with 10.0µin (0.25µm) thickness.
5mm, 8mm, 11mm, 14mm, 16mm, 19mm, and 25mm.
Board guide, ground bus (plane), and pick and place.
2 rows.
