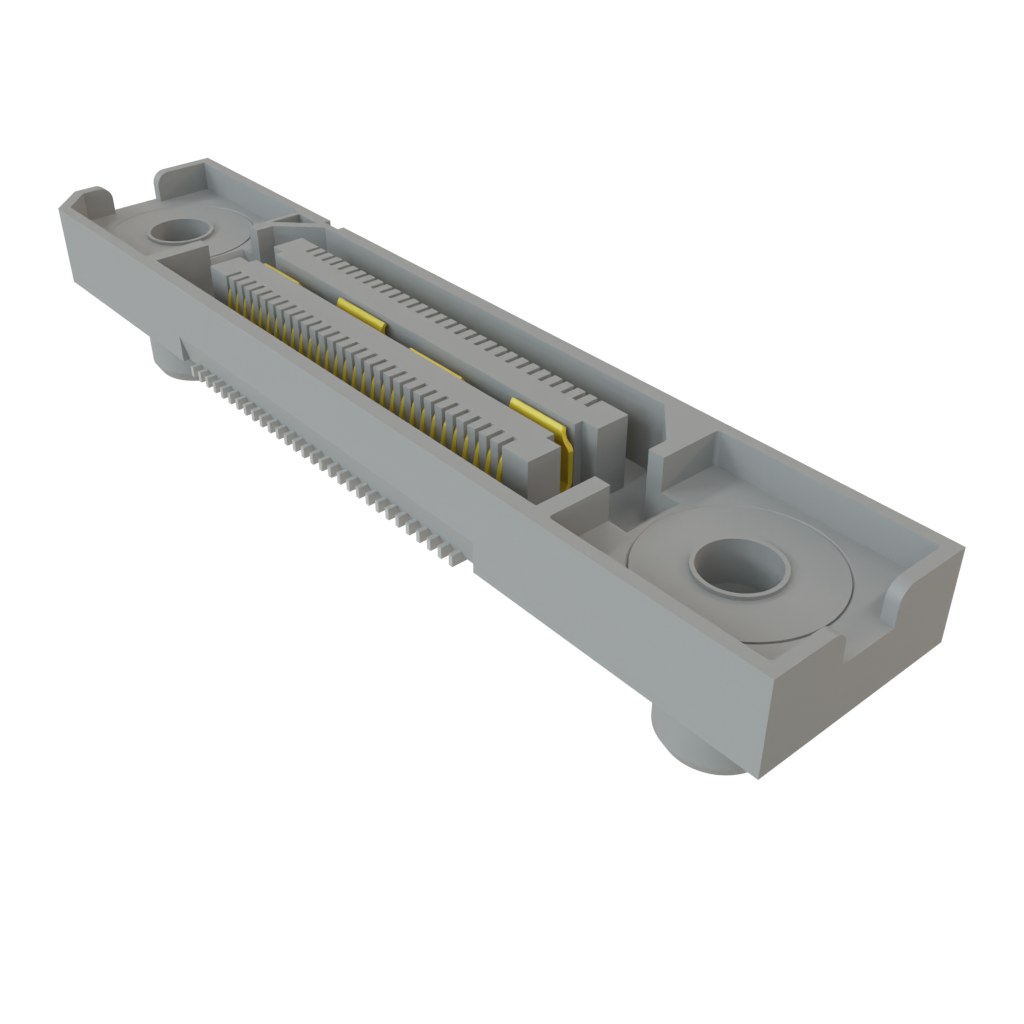

QSH-030-01-L-D-A-RT1 The Samtec QSH-030-01-L-D-A-RT1 is a high-speed ground plane SMT receptacle connector. It features a 0.50mm pitch and 60 positions across two rows.
Mfr Part #:

QSH-030-01-L-D-A-RT1

Available from 1 distributors
Mfr Name: SMT
SMT
The Samtec QSH-030-01-L-D-A-RT1 is a high-speed ground plane SMT receptacle connector. It features a 0.50mm pitch and 60 positions across two rows.
✓ Total Stock: 20 pcs

QSH-030-01-L-D-A-RT1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QSH-030-01-L-D-A-RT1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Plating
Halogen Free
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Prop 65
Tape & Reel
View Similar Products (0)

QSH-030-01-L-D-A-RT1 Description

Short technical summary and product information.

This Samtec QSH-030-01-L-D-A-RT1 connector is a 0.50mm pitch, 60-position, 2-row SMT receptacle designed for high-speed applications. It offers 10μin Gold/Tin contact plating for reliable connectivity.



The connector supports high-speed protocols with a Channel Performance Metric (CPM) of 14 Gbps NRZ. Its surface mount design facilitates integration into PCB assemblies. The QSH series is part of Samtec's Q Pairs line, known for differential pair mezzanine connectors.



Key features include guide posts for alignment and a robust construction suitable for board-to-board interconnects. The connector is halogen-free and RoHS3 compliant, meeting environmental standards.

QSH-030-01-L-D-A-RT1 Quick Information

Product Type: Receptacle Connector
Series: QSH
Canonical Name: Samtec QSH-030-01-L-D-A-RT1 .5mm Pitch 60 Position 2-Row Surface Mount Receptacle Connector
Subcategory: Receptacle

QSH-030-01-L-D-A-RT1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

QSH-030-01-L-D-A-RT1 Features

  • 0.50mm pitch high-speed receptacle connector.
  • 60 positions in 2 rows.
  • 10μin Gold/Tin contact plating.
  • Surface mount termination style.
  • Supports 14 Gbps NRZ performance.

QSH-030-01-L-D-A-RT1 Applications

  • High-speed board-to-board interconnects.
  • Mezzanine card applications.
  • Differential pair signaling systems.
  • Data communication infrastructure.

QSH-030-01-L-D-A-RT1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of the Samtec QSH-030-01-L-D-A-RT1 connector?

The pitch of the Samtec QSH-030-01-L-D-A-RT1 connector is 0.50 mm.

How many positions does the QSH-030-01-L-D-A-RT1 connector have?

The QSH-030-01-L-D-A-RT1 connector has 60 positions.

What type of plating is used on the contacts of the QSH-030-01-L-D-A-RT1 connector?

The contacts of the QSH-030-01-L-D-A-RT1 connector are plated with 10μin Gold/Tin.

What is the mounting type for the Samtec QSH-030-01-L-D-A-RT1 connector?

The mounting type for the Samtec QSH-030-01-L-D-A-RT1 connector is Surface Mount.

What is the high-speed performance of the QSH-030-01-L-D-A-RT1 connector?

The QSH-030-01-L-D-A-RT1 connector has a Channel Performance Metric (CPM) of 14 Gbps NRZ.

Is the Samtec QSH-030-01-L-D-A-RT1 connector halogen-free?

Yes, the Samtec QSH-030-01-L-D-A-RT1 connector is halogen-free.
