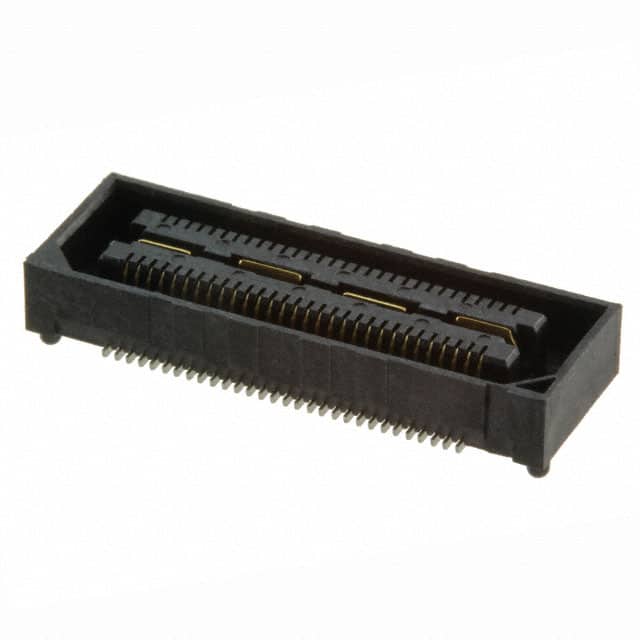

This is a 60 position, 2 row, 0.50mm pitch surface mount receptacle connector from the Samtec QSH series. It features center strip contacts with gold plating (10µin) on phosphor bronze contacts. The insulator is made of liquid crystal polymer. The connector includes a board guide, ground bus (plane), and a pick and place pad for automated assembly.
Electrical ratings: 2A per contact (2 pins powered) and 25A per ground plane. Voltage rating is 175VAC at 5mm stack height. Operating temperature range is -55°C to +125°C. The connector supports up to 100 mating cycles.
Mated stacking heights supported are 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, and 25mm, making it suitable for various board-to-board spacing requirements. The connector is lead-free solderable and has a maximum SMT lead coplanarity of 0.10mm. Packaging is tape and reel for automated placement.
This connector is designed for mezzanine board-to-board applications in industrial, telecommunications, and other electronic systems requiring high density and reliable connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.25 | $6.25 |
| 10+ | $5.31 | $5.31 |
| 25+ | $4.98 | $4.98 |
| 50+ | $4.74 | $4.74 |
| 100+ | $4.51 | $4.51 |
| 250+ | $4.23 | $4.23 |
| 525+ | $4.21 | $4.21 |
| 1,050+ | $3.94 | $3.94 |
| 2,625+ | $3.43 | $3.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions arranged in 2 rows.
0.50mm (0.020").
2A per pin (2 pins powered) and 25A per ground plane (1 ground plane powered).
175 VAC at 5mm stack height.
Surface mount.
5mm, 8mm, 11mm, 14mm, 16mm, 19mm, and 25mm.
Yes, it is lead-free solderable.
