| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,500 pcs
|
5500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| SVHC Present |

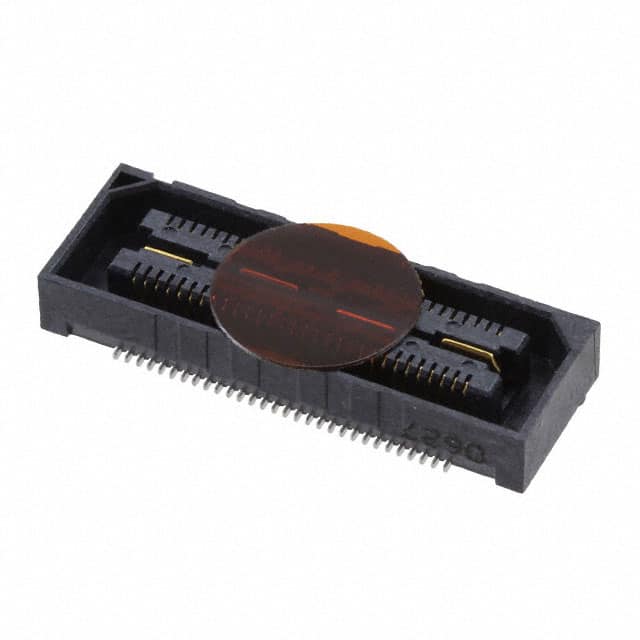

The QSH-030-01-F-D-A is a 60-position, 2-row, 0.50mm pitch receptacle connector from Samtec, designed for mezzanine (board-to-board) applications. It features surface mount termination and gold-plated contacts with 3.00µin thickness for reliable connections. The connector includes a board guide and ground bus plane for alignment and grounding. It supports a range of mated stacking heights: 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, and 25mm, providing flexibility in board spacing. The connector has a height above board of 3.25mm. It is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited). This connector is suitable for various electronic assemblies requiring compact, high-density interconnects.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.70 | $5.70 |
| 96+ | $4.38 | $4.38 |
| 288+ | $3.90 | $3.90 |
| 576+ | $3.68 | $3.68 |
| 1,152+ | $3.43 | $3.43 |
| 2,592+ | $2.79 | $2.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions.
0.50mm.
Surface mount.
2 rows.
Gold with 3.00µin thickness.
5mm, 8mm, 11mm, 14mm, 16mm, 19mm, and 25mm.
Board guide and ground bus (plane).
