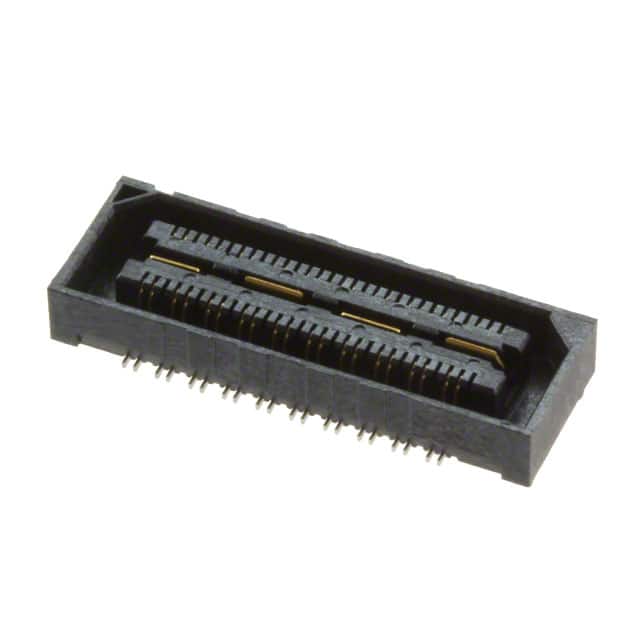

The Samtec QSH-020-01-L-D-DP-A-TR is a 40 position differential pair array receptacle designed for high-speed board-to-board mezzanine applications. This female connector features a 0.50mm (0.020") pitch and a 2-row configuration, enabling compact and dense interconnections.
The connector is surface mount compatible and includes a board guide and ground bus plane for improved alignment and signal integrity. It supports a range of mated stacking heights including 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, and 25mm, offering flexibility in system design.
Contacts are finished with 10.0µin (0.25µm) gold, ensuring reliable conductivity and corrosion resistance. The connector has a height above board of 0.128" (3.25mm). This part is part of the Samtec QSH series and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.71 | $7.71 |
| 10+ | $6.56 | $6.56 |
| 25+ | $6.14 | $6.14 |
| 50+ | $5.85 | $5.85 |
| 100+ | $5.57 | $5.57 |
| 475+ | $5.90 | $5.90 |
| 950+ | $5.03 | $5.03 |
| 1,425+ | $4.32 | $4.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 0.50mm (0.020").
This connector has 40 positions.
The mounting type is Surface Mount.
The contact finish is Gold with a thickness of 10.0µin (0.25µm).
Supported mated stacking heights are 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, and 25mm.
