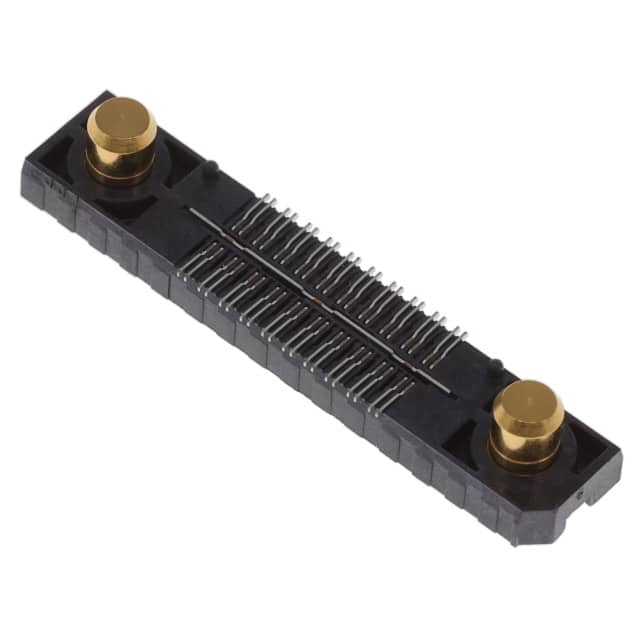

The Samtec QSH-020-01-L-D-DP-A-RT1 is a differential pair array receptacle designed for high-speed mezzanine board-to-board applications. This connector features 40 positions arranged in 2 rows on a 0.50mm pitch, enabling dense signal routing in compact designs.
The connector is surface mount compatible and includes a board guide, ground bus (plane), and mounting flange for reliable alignment and mechanical stability. The contacts are finished with 10.0µin (0.25µm) gold plating, ensuring low contact resistance and corrosion resistance over repeated mating cycles.
This part supports multiple mated stacking heights including 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, and 25mm, providing flexibility for various board spacing requirements. The -RT1 retention option ensures secure mating in high-vibration environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.75 | $11.75 |
| 10+ | $11.40 | $11.40 |
| 25+ | $11.11 | $11.11 |
| 50+ | $10.57 | $10.57 |
| 100+ | $9.81 | $9.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Differential Pair Array, Female receptacle.
40 positions arranged in 2 rows.
0.50mm (0.020").
Surface Mount.
Gold, 10.0µin (0.25µm) thickness.
0.128" (3.25mm).
5mm, 8mm, 11mm, 14mm, 16mm, 19mm, and 25mm.
