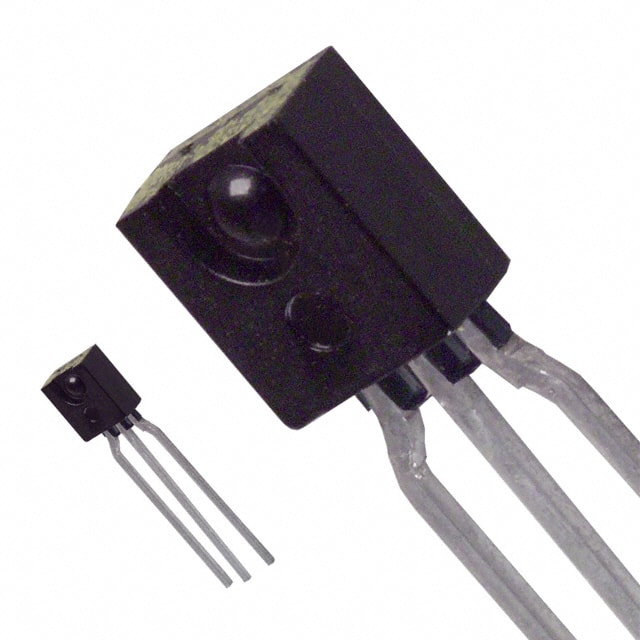

QSE159 The QSE159 is an OPTOLOGIC IC photosensor from On Semiconductor featuring a Schmitt trigger for noise immunity. It has a reception angle of 50° and an open collector inverter output.
Mfr Part #:

QSE159

Available from 2 distributors
Mfr Name: On Semiconductor
On Semiconductor
The QSE159 is an OPTOLOGIC IC photosensor from On Semiconductor featuring a Schmitt trigger for noise immunity. It has a reception angle of 50° and an open collector inverter output.
✓ Total Stock: 5,294 pcs
$ Price Range: $0.50

QSE159 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
3,500 pcs
On Request
3500 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,794 pcs
On Request
1794 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QSE159 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Hysteresis Ratio
Low-Level Output Voltage
Operating Temperature
Output Current
Output Rise, Fall Times
Output Type
Output Voltage
Package Material and Color
Positive Going Threshold Irradiance
Power Dissipation
Propagation Delay
Reception Angle
Supply Current
Supply Voltage
Type
Wavelength
View Similar Products (0)

QSE159 Description

Short technical summary and product information.

The QSE159 from On Semiconductor is a versatile OPTOLOGIC IC photosensor designed for various applications requiring light detection with logic output. It incorporates a photodiode, linear amplifier, voltage regulator, and a Schmitt trigger for enhanced noise immunity and pulse shaping.



This device operates within a temperature range of -40°C to 85°C and features a medium wide reception angle of 50°. The output type is an open collector inverter, compatible with TTL/LSTTL interfaces. It is housed in a black epoxy sidelooker package.



Key electrical characteristics include a supply voltage range of 4.0V to 16V, an output current capability of up to 50mA, and a maximum output voltage of 35V. The photosensor has a typical propagation delay of 6.0ns and output rise/fall times of 100ns.



This component is suitable for applications where reliable light detection and logic-level signaling are required. Its direct TTL/LSTTL interface simplifies integration into digital systems.

QSE159 Quick Information

Product Type: Photosensor
Canonical Name: QSE159 OPTOLOGIC IC Photosensor
Subcategory: Logic Output

QSE159 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb−Free Device

QSE159 Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

QSE159 Features

  • OPTOLOGIC IC photosensor with Schmitt trigger.
  • Medium wide reception angle of 50 degrees.
  • Open collector inverter output type.
  • Direct TTL/LSTTL interface compatibility.
  • Operates from -40°C to 85°C.

QSE159 Applications

  • Light detection with logic output.
  • Noise-sensitive digital interfaces.
  • Pulse shaping applications.
  • Integration into control systems.

QSE159 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the QSE159 photosensor?

-40°C to 85°C (TA)

What type of output does the QSE159 photosensor provide?

Open Collector Inverter

What is the reception angle of the QSE159 photosensor?

50°

What is the supply voltage range for the QSE159?

4.0V to 16V

What is the maximum output current for the QSE159?

50mA

What is the package type for the QSE159?

3-SIP, Side View
