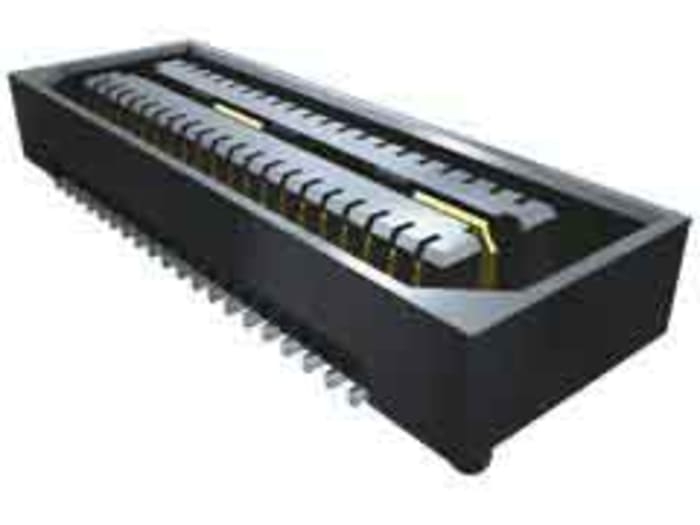

QSE-060-01-L-D-A-K The Samtec QSE-060-01-L-D-A-K is a 120-contact, 2-row PCB socket with a 0.8mm pitch. It features a straight surface mount orientation and a high-speed ground plane socket design.
Mfr Part #:

QSE-060-01-L-D-A-K

Available from 1 distributors
Mfr Name: SMT
SMT
The Samtec QSE-060-01-L-D-A-K is a 120-contact, 2-row PCB socket with a 0.8mm pitch. It features a straight surface mount orientation and a high-speed ground plane socket design.
✓ Total Stock: 113 pcs

QSE-060-01-L-D-A-K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
113 pcs
On Request
113 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QSE-060-01-L-D-A-K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector System
Contact Material
Contact Plating
Country of Origin
Current Rating
Failure Rate
Housing Material
Lead Spacing
Lead Style
Number of Contacts
Number of Rows
Orientation
Pitch
SVHC Present
Voltage Rating
View Similar Products (0)

QSE-060-01-L-D-A-K Description

Short technical summary and product information.

This Samtec QSE Series PCB socket, part number QSE-060-01-L-D-A-K, is designed for board-to-board applications. It offers 120 contacts arranged in 2 rows with a fine 0.8mm pitch, suitable for high-density interconnects. The socket features a straight orientation and surface mount termination, utilizing a Liquid Crystal Polymer housing for durability.



Key electrical specifications include a current rating of 23A and a voltage rating of 225V. The contacts are made of bronze with gold plating for reliable conductivity. Operating temperatures range from -55°C to 125°C. The stacking height is 5mm, and the row pitch is 5.73mm.



This component is classified as a High Speed Ground Plane Socket, indicating its suitability for demanding signal integrity applications. It is manufactured in the United States and is designed for robust performance in various electronic systems.

QSE-060-01-L-D-A-K Quick Information

Product Type: PCB Socket
Series: QSE
Canonical Name: Samtec QSE Series Straight Surface PCB Socket, 120-Contact, 2 Row, 0.8 mm Pitch Solder
Subcategory: Arrays, Edge Type, Mezzanine (Board to Board)

QSE-060-01-L-D-A-K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

QSE-060-01-L-D-A-K Features

  • 120 contacts in 2 rows.
  • 0.8 mm pitch for high density.
  • Surface mount, straight orientation.
  • 23A current and 225V voltage rating.
  • High speed ground plane socket.

QSE-060-01-L-D-A-K Applications

  • Ideal for board-to-board connections.
  • Suitable for high-speed applications.
  • Used in compact electronic designs.
  • Reliable signal integrity required.

QSE-060-01-L-D-A-K FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the QSE-060-01-L-D-A-K?

The contact pitch is 0.8 mm.

What is the current rating of this connector?

The current rating is 23 A.

What is the voltage rating?

The voltage rating is 225 V.

What is the mounting type for this part?

It is a surface mount connector.

How many contacts does the QSE-060-01-L-D-A-K have?

It has 120 contacts arranged in 2 rows.

What is the stacking height of this connector?

The stacking height is 5 mm.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.
