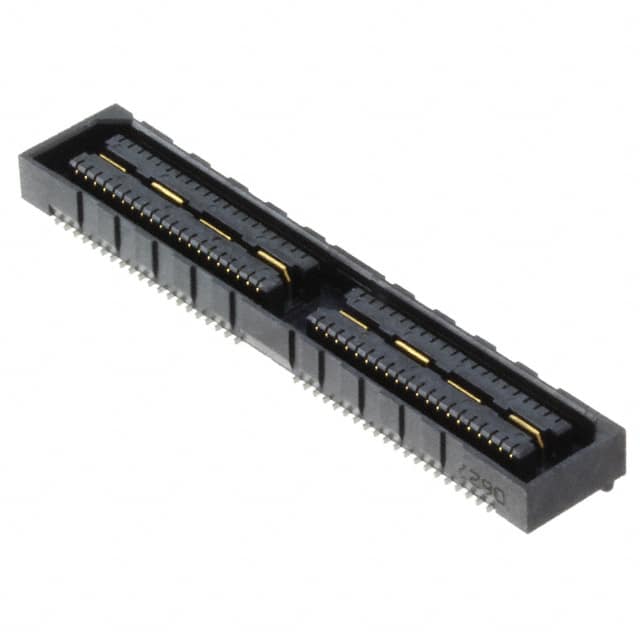

QSE-040-01-C-D-A-K 80-position mezzanine receptacle (QSE series) from Samtec with 0.8mm pitch, surface mount, gold contact finish. Features board guide, ground plane, and pick-and-place pad.
Mfr Part #:

QSE-040-01-C-D-A-K

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
80-position mezzanine receptacle (QSE series) from Samtec with 0.8mm pitch, surface mount, gold contact finish. Features board guide, ground plane, and pick-and-place pad.
✓ Total Stock: 1,255 pcs
$ Price Range: $6.59 - $14.32

QSE-040-01-C-D-A-K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1,255 pcs
On Request
1255 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QSE-040-01-C-D-A-K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Current Rating
Features
Height Above Board
Insulator Material
Lead-Free Solderable
Mated Stacking Heights
Max Cycles
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Packaging Type
Pick and Place Pad
Pitch
SMT Lead Coplanarity
Voltage Rating
View Similar Products (0)

QSE-040-01-C-D-A-K Description

Short technical summary and product information.

The Samtec QSE-040-01-C-D-A-K is a high-density mezzanine receptacle part of the QSE series. It features 80 positions arranged in 2 rows with a 0.8mm pitch, designed for surface mount soldering. The contacts are phosphor bronze with a 50µin gold finish, ensuring reliable conductivity and corrosion resistance. The insulator is made of liquid crystal polymer, suitable for high-temperature processing.



This connector supports multiple mated stacking heights: 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, and 25mm, providing flexibility in board-to-board applications. The current rating is 2A per pin (with 2 pins powered) and 23A per ground plane. The voltage rating is 225VAC when mated at a 5mm stack height. Operating temperature ranges from -55°C to +125°C, and it is rated for 100 mating cycles.



Additional features include an integrated board guide, a ground bus (plane) for improved signal integrity, and a pick-and-place pad (the -K option uses a polyimide film pad). The component is lead-free solderable and meets SMT lead coplanarity of 0.10mm maximum. Default packaging is tray; tape and reel options are available with the -TR suffix.

QSE-040-01-C-D-A-K Quick Information

Product Type: Mezzanine Receptacle
Series: QSE
Canonical Name: QSE-040-01-C-D-A-K - 80 Position Receptacle, Center Strip Contacts, Surface Mount, Gold
Subcategory: Board-to-Board Array Receptacle

QSE-040-01-C-D-A-K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

QSE-040-01-C-D-A-K Estimated Pricing

Qty Low High
64+ $14.32 $14.32
128+ $10.97 $10.97
192+ $9.85 $9.85
448+ $7.61 $7.61
1,856+ $6.59 $6.59

Estimated market price range - modelled values for guidance only, not live distributor offers.

QSE-040-01-C-D-A-K Features

  • 80-position, 2-row, 0.8mm pitch array.
  • Gold contact finish with 50µin thickness.
  • Supports multiple stacking heights from 5 to 25mm.
  • Rated for 2A per pin and 23A per ground plane.
  • Includes board guide and pick-and-place pad.

QSE-040-01-C-D-A-K Applications

  • Mezzanine board-to-board stacking in compact designs.
  • High-density signal and power distribution.
  • Applications requiring multiple stack heights.

QSE-040-01-C-D-A-K FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

80 positions.

What is the pitch?

0.80mm (0.031").

What is the current rating?

2A per pin (2 pins powered) and 23A per ground plane (1 ground plane powered).

What is the voltage rating?

225 VAC when mated with a 5mm stack height.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-55°C to +125°C.

What is the contact finish?

Gold, 50µin (1.27µm) thickness.
