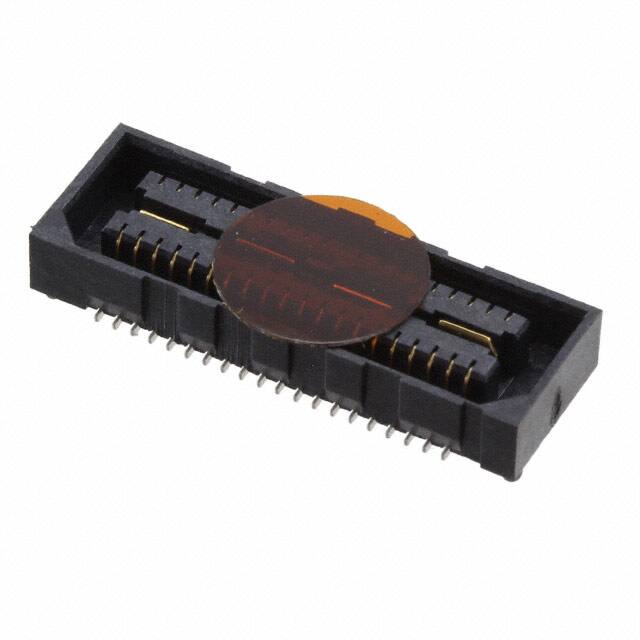

QSE-020-01-L-D-A-K The Samtec Inc. QSE-020-01-L-D-A-K is a 40-position receptacle connector with a 0.8mm pitch and surface mount termination. It is rated for 225V and features gold-plated contacts.
Mfr Part #:

QSE-020-01-L-D-A-K

Available from 1 distributors
Mfr Name: SMT
SMT
The Samtec Inc. QSE-020-01-L-D-A-K is a 40-position receptacle connector with a 0.8mm pitch and surface mount termination. It is rated for 225V and features gold-plated contacts.
✓ Total Stock: 91 pcs

QSE-020-01-L-D-A-K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
91 pcs
On Request
91 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QSE-020-01-L-D-A-K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Finish Thickness
Depth
Durability
Failure Rate
Features
Height Above Board
Housing Material
Length
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
Width
View Similar Products (0)

QSE-020-01-L-D-A-K Description

Short technical summary and product information.

The Samtec Inc. QSE-020-01-L-D-A-K is a high-speed dual receptacle connector from the Q Strip® series. It features 40 positions arranged in 2 rows with a pitch of 0.8mm.



This connector is designed for surface mount applications and has a voltage rating of 225V. The contacts are made of gold-plated nickel bronze, ensuring reliable conductivity. The housing is constructed from durable plastic polymer and is polarized for correct mating.



Key specifications include a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. The connector has a durability rating of 100 cycles. It is ROHS3 compliant and lead-free.



With its compact design and robust construction, the QSE-020-01-L-D-A-K is suitable for various electronic applications requiring high-density interconnects.

QSE-020-01-L-D-A-K Quick Information

Product Type: Rectangular Connector
Series: QSE
Canonical Name: Samtec Inc. QSE-020-01-L-D-A-K Receptacle, Center Strip Contacts, 40 Positions, Surface Mount
Subcategory: Center Strip Contacts

QSE-020-01-L-D-A-K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

QSE-020-01-L-D-A-K Features

  • 40 positions in a dual row configuration.
  • 0.8mm pitch for high-density applications.
  • Surface mount termination for easy assembly.
  • 225V voltage rating for reliable operation.
  • Gold-plated contacts ensure signal integrity.

QSE-020-01-L-D-A-K Applications

  • Suitable for high-speed data interfaces.
  • Ideal for compact electronic devices.
  • Used in board-to-board connections.
  • Applicable in telecommunications equipment.
  • Can be used in industrial control systems.

QSE-020-01-L-D-A-K FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

40 positions in 2 rows.

What is the pitch?

0.80mm

What is the current rating?

Maximum 2A (signal 1.3A)

What is the voltage rating?

225V

What is the mounting type?

Surface Mount

What is the operating temperature range?

-55°C to +125°C

What is the contact material?

Gold, Nickel Bronze with gold plating
