| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
917,977 pcs
|
917977 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
1,900 pcs
|
1900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Active Area | |
| Current | |
| Diode Type | |
| Mounting Type | |
| Operating Temperature | |
| Response Time | |
| Spectral Range | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

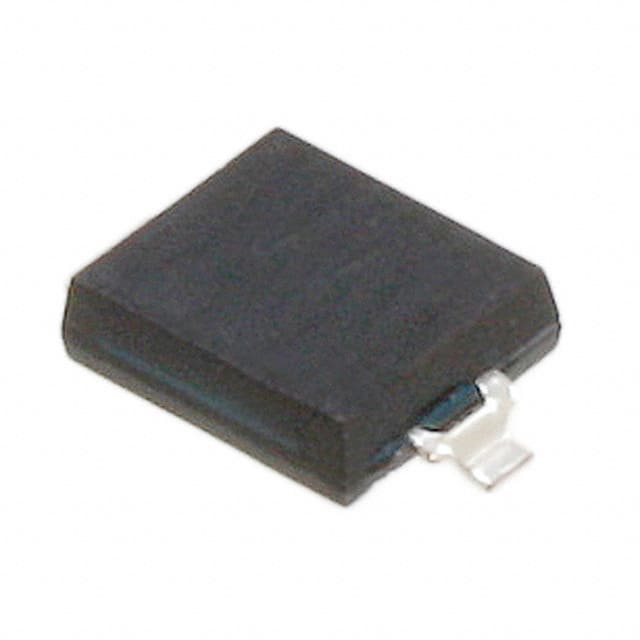

The On Semiconductor QSB34GR is a PIN photodiode designed for optical sensing applications. It operates with a wavelength sensitivity centered around 940nm, covering a broad spectral range from 730nm to 1100nm. This component is built for speed, offering a response time of 50ns, making it suitable for applications requiring rapid detection of light signals.
This photodiode is designed for surface mounting, utilizing a 2-SMD Gull Wing package for integration into electronic circuits. It has a voltage rating of 32V and a low dark current of 30nA. The wide viewing angle of 120° allows for flexibility in optical path design. Its operating temperature range is -25°C to 85°C, ensuring reliable performance in various environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The QSB34GR photodiode has a wavelength of 940nm.
The spectral range of the QSB34GR photodiode is 730nm to 1100nm.
The response time of the QSB34GR photodiode is 50ns.
The current rating for the QSB34GR photodiode is 30nA.
The voltage rating of the QSB34GR photodiode is 32 V.
The QSB34GR photodiode operates within a temperature range of -25°C to 85°C.
The QSB34GR photodiode uses a 2-SMD, Gull Wing package.
