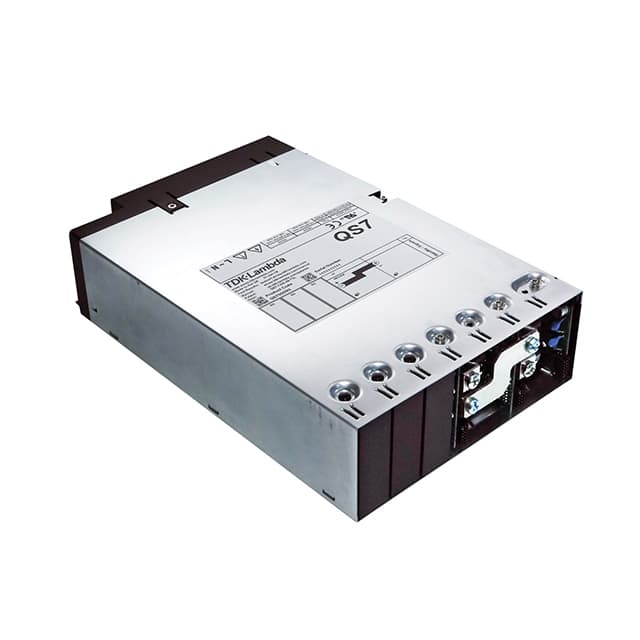

The TDK Corporation QS7000C5 is an enclosed AC/DC converter designed for various applications including ITE (Commercial), Laboratory, and Medical. It offers a robust power output of 1080W and a current capacity of 90A.
This converter features a chassis mount type, making it suitable for integration into larger systems. Key electrical specifications include an efficiency of 91% and an isolation voltage of 4kV. It operates within a temperature range of -20°C to 70°C with derating.
Additional features include adjustable output, PFC, PMBus™, remote sense, standby output, and universal input. The unit is approved by CB and CE agencies, indicating compliance with relevant safety and performance standards. It provides a single output.
Dimensions are 270.0mm in length, 176.0mm in width, and 63.3mm in height.
The QS7000C5 converter has a power output of 1080W.
The QS7000C5 provides a maximum current output of 90A.
The operating temperature range for the QS7000C5 is -20°C to 70°C, with derating.
The QS7000C5 uses chassis mount.
The dimensions of the QS7000C5 are 270.0mm x 176.0mm x 63.3mm.
