| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| SVHC Present | |
| Supply Voltage | |
| Type |

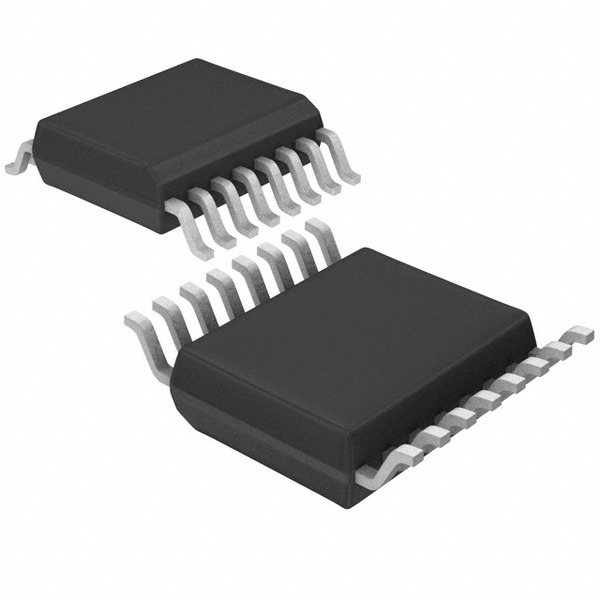

The Renesas Electronics America Inc QS3VH257PAG8 is a bus switch IC designed for efficient digital signal routing. It features 4 independent 2:1 switching paths within a single chip, making it suitable for multiplexing and signal selection applications.
This device operates from a single supply voltage ranging from 2.3V to 3.6V, making it ideal for low-voltage systems. The operating temperature range is -40°C to 85°C, suitable for industrial environments. The QS3VH257PAG8 comes in a compact 16-pin TSSOP surface-mount package.
Key specifications include its 4 x 2:1 circuit configuration and bus switch functionality. It is designed for reliable switching with minimal signal degradation and low ON resistance. Applications include memory bus expansion, FPGA and microcontroller I/O selection, and low-voltage portable devices.
The QS3VH257PAG8 is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1. Its surface mount design requires appropriate handling precautions.
The supply voltage range is 2.3V to 3.6V.
The operating temperature range is -40°C to 85°C.
It comes in a 16-TSSOP package.
Yes, it is RoHS3 compliant.
