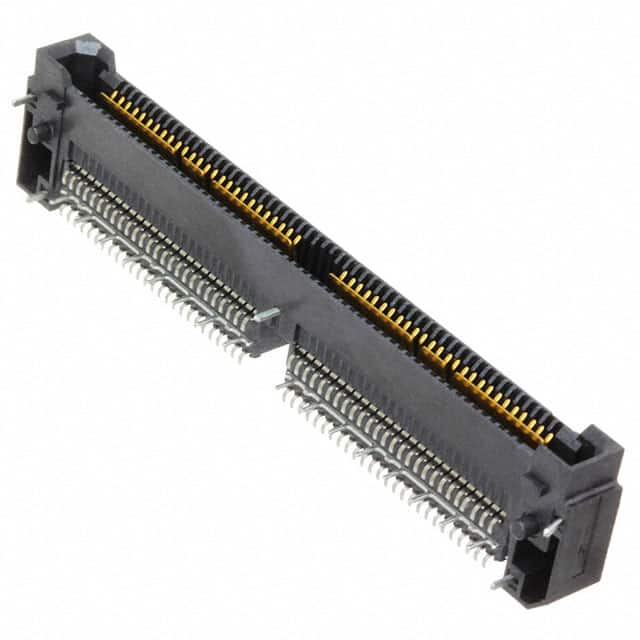

QRF8-052-01-L-RA-GP Array receptacle connector with 104 positions, 2 rows, 0.80mm pitch, surface mount right angle, gold contact finish. Supports up to 28 Gbps data rate.
Mfr Part #:

QRF8-052-01-L-RA-GP

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Array receptacle connector with 104 positions, 2 rows, 0.80mm pitch, surface mount right angle, gold contact finish. Supports up to 28 Gbps data rate.
✓ Total Stock: 5 pcs
$ Price Range: $18.36 - $28.32

QRF8-052-01-L-RA-GP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

QRF8-052-01-L-RA-GP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Finish Thickness
Data Rate
Features
Halogen Free
Height
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Rows
Pitch
SVHC Present
Tape & Reel
View Similar Products (0)

QRF8-052-01-L-RA-GP Description

Short technical summary and product information.

The QRF8-052-01-L-RA-GP is a high-speed ground plane receptacle connector from Samtec's Q Rate® series. It features 104 positions arranged in 2 rows with a 0.80mm pitch, designed for surface mount right-angle mounting. The connector includes a board guide and ground bus plane for improved signal integrity.



This connector supports data rates up to 28 Gbps (NRZ) and operates at frequencies up to 16 GHz. The contacts are plated with 10 µ" (0.25 µm) gold on the contact area and matte tin on tails. The low profile height of 5.13 mm makes it suitable for dense board layouts.



Packaging is in trays of 30 pieces, with tape and reel options available. The connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is designed for use in high-speed digital applications such as networking, data storage, and telecommunications.

QRF8-052-01-L-RA-GP Quick Information

Product Type: Array Receptacle Connector
Series: QRF8
Canonical Name: Array, Female Sockets, 104 Positions, 2 Rows, 0.80mm Pitch, Surface Mount, Right Angle, Gold
Subcategory: Receptacle

QRF8-052-01-L-RA-GP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

QRF8-052-01-L-RA-GP Estimated Pricing

Qty Low High
1+ $28.32 $28.32
30+ $24.46 $24.46
60+ $23.94 $23.94
120+ $20.65 $20.65
240+ $19.46 $19.46
480+ $18.36 $18.36

Estimated market price range - modelled values for guidance only, not live distributor offers.

QRF8-052-01-L-RA-GP Features

  • 104 positions in 2 rows with 0.80mm pitch.
  • Supports data rates up to 28 Gbps NRZ.
  • Right angle surface mount for space-saving design.
  • Integral ground plane for enhanced signal integrity.
  • Low profile height of 5.13 mm.

QRF8-052-01-L-RA-GP Applications

  • High-speed networking and telecommunications equipment.
  • Data storage and server backplane connections.
  • Test and measurement instrumentation.
  • Industrial computing and control systems.

QRF8-052-01-L-RA-GP FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the QRF8-052-01-L-RA-GP have?

104 positions.

What is the pitch of this connector?

0.80mm.

What is the mounting type?

Surface mount, right angle.

What is the maximum data rate?

28 Gbps NRZ.

What is the operating frequency?

Up to 16 GHz.

What is the contact finish?

Gold, 10 µ" (0.25 µm) on contacts, matte tin on tails.

Does it have a guide post?

Yes, includes guide post (-GP option).
