| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

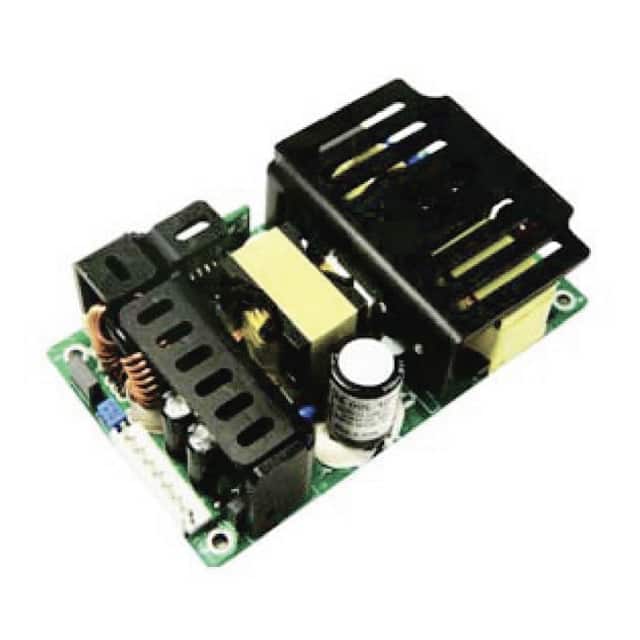

The Qualtek QPSF-200-24 is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a 24V output with a power rating of 150W, capable of up to 202W with forced air.
Key features include adjustable output, Power Factor Correction (PFC), and universal input. The converter has an efficiency of 89% and can operate within a temperature range of -20°C to 70°C with derating. Its dimensions are 128.0mm x 76.5mm x 34.6mm, and it is chassis mountable.
This converter is approved by CB, CE, and cURus agencies, ensuring compliance with various safety standards. It is RoHS3 compliant and has an MSL rating of 1.
24V.
150W (202W with forced air).
89%.
-20°C to 70°C with derating.
Chassis Mount.
Adjustable Output, PFC, Universal Input.
CB, CE, cURus.
