| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

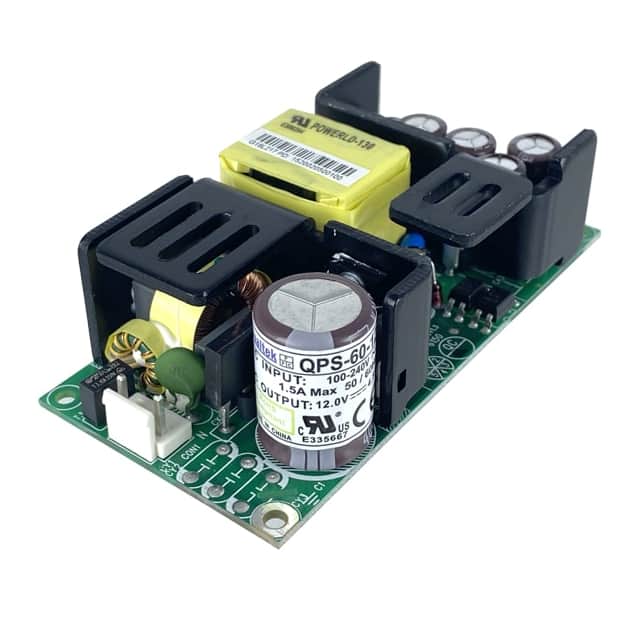

The Qualtek QPS-60-15 is an open frame AC/DC power supply designed for ITE (Commercial) applications. It delivers 60W of power with a single 15V output.
Key electrical specifications include a universal AC input range of 88-264VAC, an efficiency of 85%, and a maximum output current of 3.6A. The unit operates within a temperature range of -25°C to +70°C with derating and features adjustable output, DC input capability, and low no-load power consumption (<0.5W).
This converter is designed for chassis mounting and includes features such as conformal coating on the PCB soldering side. It holds approval agency certifications including CB, CE, and cURus, indicating compliance with relevant safety standards.
The QPS-60-15 provides a single 15VDC output at 3.6A.
The universal AC input range is 88-264VAC.
The operating temperature range is -25°C to +70°C with derating.
It holds CB, CE, and cURus approvals.
The efficiency is 85%.
The dimensions are 101.6mm (length) x 51.0mm (width) x 30.0mm (height).
