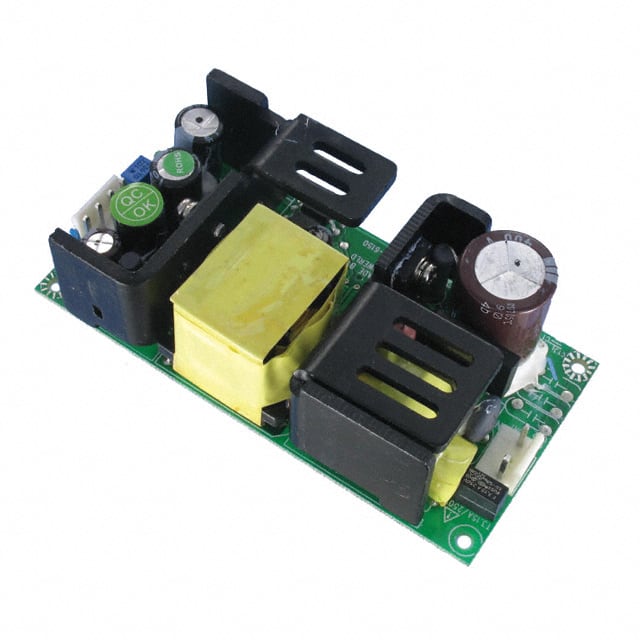

The Qualtek QPS-60-12 is a 60-watt single-output AC/DC power supply designed for various applications. It operates with a universal AC input range of 90-264VAC and can also accept a DC input from 127-370VDC.
This converter delivers a nominal output voltage of 12V with a rated current of 4.5A, providing a total power of 60W. Key electrical specifications include a typical efficiency of 85% at 115VAC input and 87% at 230VAC input. It offers adjustable output voltage within a range of 11.2V to 13.4V and features protections such as Over Load (OLP), Over Voltage (OVP), and Short Circuit (SCP).
The QPS-60-12 is built with a chassis mount type and has dimensions of 101.6mm x 50.8mm x 28.0mm. It operates within a wide ambient temperature range of -25°C to 70°C and is cooled by free air convection. Safety standards include UL60950-1 and EN60950-1, with a withstand voltage of 3.0KVAC between primary and secondary.
Additional features include compliance with EMI standards like EN55022 Class B and EMS immunity criteria. The unit utilizes 105°C long-life electrolytic capacitors and undergoes 100% full load burn-in testing for reliability. Its MTBF is rated at over 200,000 hours at 25°C and full load.
The nominal output voltage is 12V.
The rated current is 4.5A.
The maximum power output is 60W.
The operating temperature range is -25°C to 70°C.
It complies with UL60950-1 and EN60950-1:2006.
