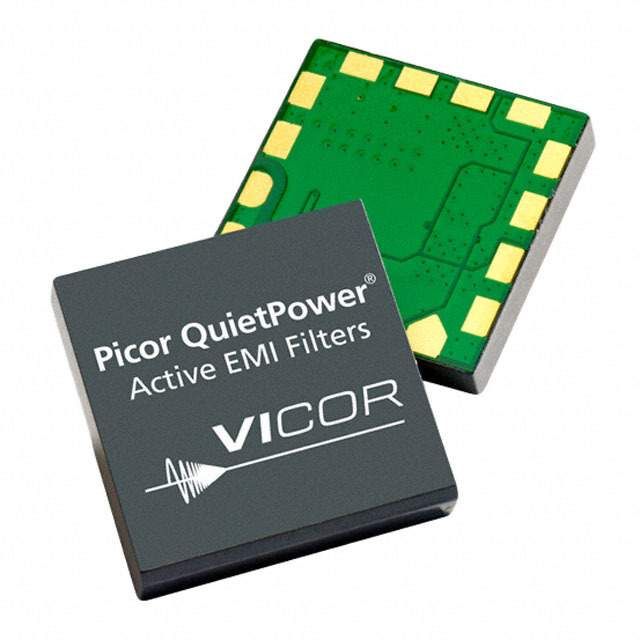

The Vicor QPI-5LZ is a 14A active EMI filter System-in-Package (SiP) designed to attenuate conducted common-mode (CM) and differential-mode (DM) noise over the CISPR22 frequency range of 150kHz to 30MHz. It is intended for use on 24VDC bus systems with an input voltage range of 10 to 40VDC and features a 100VDC surge capability for 100ms.
Key electrical specifications include a typical common-mode attenuation of 60dB and differential-mode attenuation of 75dB at 250kHz (50Ω). The filter achieves a minimum efficiency of 99% and offers a 707VDC hipot hold-off to the shield plane. It is rated for a continuous current of 14A and supports an operating temperature range of -40 to +125°C.
The QPI-5LZ is housed in a low-profile LGA SiP package measuring 25.3 x 25.3 x 5.2mm (lidded version) and is surface-mountable. It is designed for telecom and ITE bus applications, supporting the PICMG 3.0 specification for filtering system boards to EN55022 Class B limits.
| Qty | Low | High |
|---|---|---|
| 1+ | $48.98 | $48.98 |
| 10+ | $38.91 | $38.91 |
| 25+ | $38.32 | $38.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum input voltage is 40 V.
The current rating is 14 A.
The operating temperature range is -40 to +125 °C.
The QPI-5LZ uses an LGA SiP package.
The typical common-mode attenuation is 60 dB at 250kHz (50Ω).
The typical differential-mode attenuation is 75 dB at 250kHz (50Ω).
The minimum efficiency is 99%.
