| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Rated Current | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

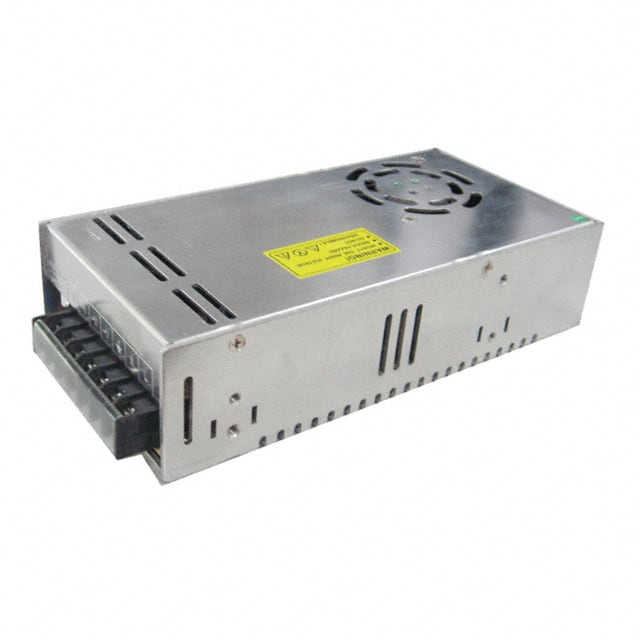

The Qualtek QPDF-200-12 is a 200-watt enclosed AC/DC power supply designed for ITE (Commercial) applications. It provides a single 12V DC output with a rated current of 16.7A and a current range of 0-16.7A.
This converter features a universal AC input range of 90-264VAC and includes a built-in active PFC function with a power factor typically greater than 0.95 at 230VAC. It boasts high efficiency, typically 81% at 230VAC, and offers comprehensive output protections including OLP, OTP, OVP, and SCP.
Designed for chassis mounting, the QPDF-200-12 has dimensions of 199.0mm x 99.0mm x 50.0mm. It operates within an ambient temperature range of -10°C to 60°C and is cooled by forced air using a built-in DC fan. Safety standards include UL60950-1 and EN60950-1.
The QPDF-200-12 has a nominal output voltage of 12V.
The rated current for the QPDF-200-12 is 16.7A.
The QPDF-200-12 has a power rating of 200W.
The QPDF-200-12 accepts a universal AC input voltage range of 90VAC to 264VAC.
The QPDF-200-12 operates within an ambient temperature range of -10°C to 60°C.
Yes, the QPDF-200-12 features Over Load Protection (OLP) that operates between 105% to 140% of rated output current in hiccup mode with auto recovery.
The QPDF-200-12 complies with safety standards UL60950-1 and EN60950-1:2006.
