| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

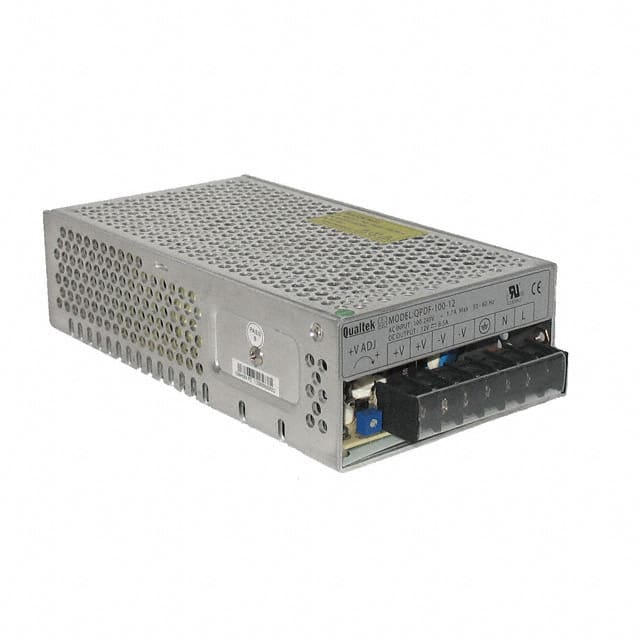

The Qualtek QPDF-100-12 is an enclosed AC/DC power supply delivering a nominal 12V DC output with a maximum current of 8.5A, totaling 100W of power. It accepts a universal input voltage range of 90-264 VAC and incorporates a built-in active Power Factor Correction (PFC) function, achieving a typical power factor greater than 0.95 at 230VAC.
Designed for reliability, this converter utilizes 105°C long-life electrolytic capacitors and undergoes a 100% full load burn-in test. Key electrical specifications include a voltage accuracy of ±2.0%, line regulation of ±0.5%, and load regulation of ±1.0%. It offers protections against overload (OLP), overvoltage (OVP), and short circuit (SCP).
With dimensions of 194mm x 99mm x 50mm, the QPDF-100-12 is suitable for chassis mounting and operates via free air convection cooling. Its environmental characteristics include an operating temperature range of -10°C to 60°C and compliance with safety standards such as UL60950-1 and EN60950-1. This power supply is well-suited for ITE (Commercial) applications.
The nominal output voltage is 12V.
The maximum output current is 8.5A.
The total power output is 100W.
The input voltage range is 90-264 VAC.
Yes, it has a built-in active PFC function.
The operating temperature range is -10°C to 60°C.
It is designed for chassis mounting.
