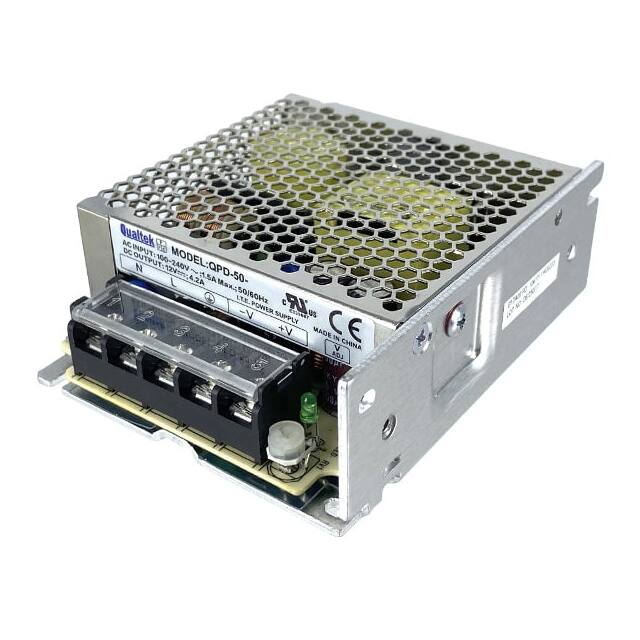

The Qualtek QPD-50-12 is a 50W AC/DC enclosed power supply designed for ITE (Commercial) applications. It offers a single 12VDC output with an adjustable output feature and universal AC input capabilities, accepting a range of 88-264VAC.
This power supply operates within a temperature range of -25°C to 70°C with derating and has an isolation voltage of 3kV. Its efficiency is rated at 85%, with a low no-load power consumption of less than 0.5W. The unit is designed for chassis mounting and has dimensions of 99.0mm x 82.0mm x 35.0mm.
Key features include DC input capability and compliance with CB, CE, and cURus approval agencies. The QPD-50-12 is suitable for various industrial and commercial applications requiring a reliable and compact power conversion solution.
The QPD-50-12 provides a 12VDC output voltage.
The unit uses a chassis mount type for secure installation.
The converter operates between -25°C and 70°C with derating.
It accepts a universal AC input ranging from 88VAC to 264VAC.
The device offers 3kV of isolation voltage between input and output.
The converter achieves 85% efficiency under standard operating conditions.
