| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

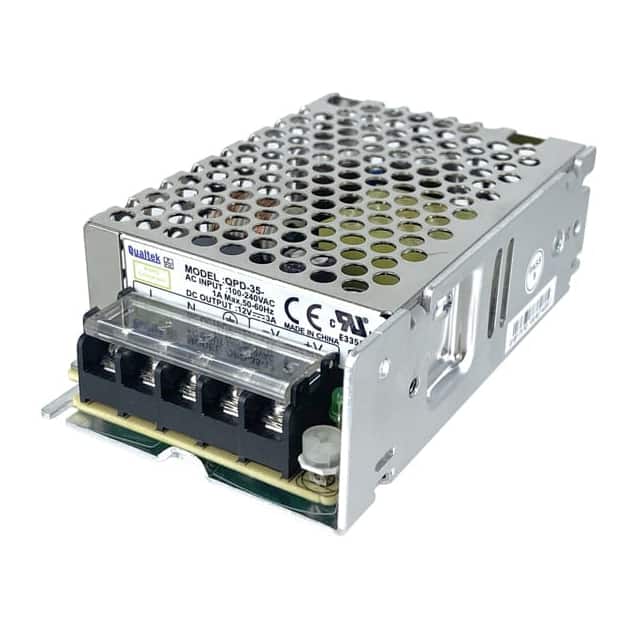

The Qualtek QPD-35-24 is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It delivers a continuous output power of 35W with a single 24VDC output at 1.5A.
This converter features a universal AC input range of 88-264VAC, making it suitable for global use. It boasts an efficiency of 87% and includes features such as adjustable output, DC input capability, and universal input. The operating temperature range is -25°C to +70°C with derating.
Designed for chassis mounting, the QPD-35-24 has dimensions of 101.6mm x 63.5mm x 33mm. It also offers an isolation voltage of 3kV and is approved by CB, CE, and cURus agencies, ensuring compliance and reliability for various electronic systems.
24VDC.
35W.
88-264VAC.
-25°C to 70°C.
87%.
Chassis mount.
CB, CE, cURus.
