| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Rated Current | |
| SVHC Present | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

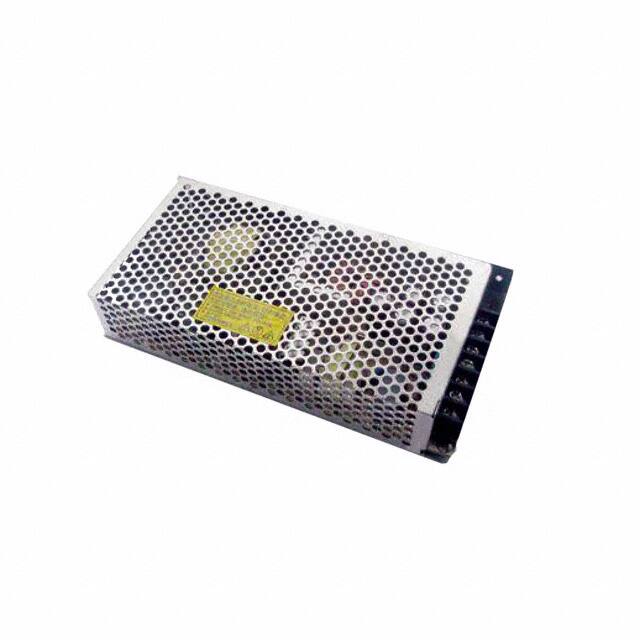

The Qualtek QPD-150-12 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers a 12V DC output with a rated current of 12.5A, providing a total power of 150W.
This converter operates with a wide input voltage range from 88VAC to 264VAC and features a frequency range of 47Hz to 63Hz. It boasts an efficiency of 83% and includes features like adjustable output, Power Factor Correction (PFC), and universal input. Protections include Over Load (OLP), Over Voltage (OVP), and Short Circuit (SCP) with auto-recovery mechanisms.
The unit is designed for chassis mounting and operates within a wide ambient temperature range of -20°C to 70°C. Its dimensions are 199.0mm x 98.0mm x 38.0mm. Safety standards include UL60950-1 and EN60950-1, with a withstand voltage of 3.0KVAC (Primary-Secondary).
Key specifications include a line regulation of ±0.5% and load regulation of ±1.0%. The MTBF is rated at over 100,000 hours at 25°C full load. Cooling is achieved through free air convection.
The QPD-150-12 provides a 12V DC output voltage.
The rated current for the QPD-150-12 is 12.5A.
The QPD-150-12 has a power rating of 150W.
The QPD-150-12 accepts an input voltage range of 88VAC to 264VAC.
The QPD-150-12 operates in an ambient temperature range of -20°C to 70°C.
The QPD-150-12 complies with UL60950-1 and EN60950-1:2006 safety standards.
The QPD-150-12 is cooled by free air convection.
