| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating (Amps) | |
| Gender | |
| Height | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Number of Positions or Pins (Grid) | |
| Pitch | |
| Type |

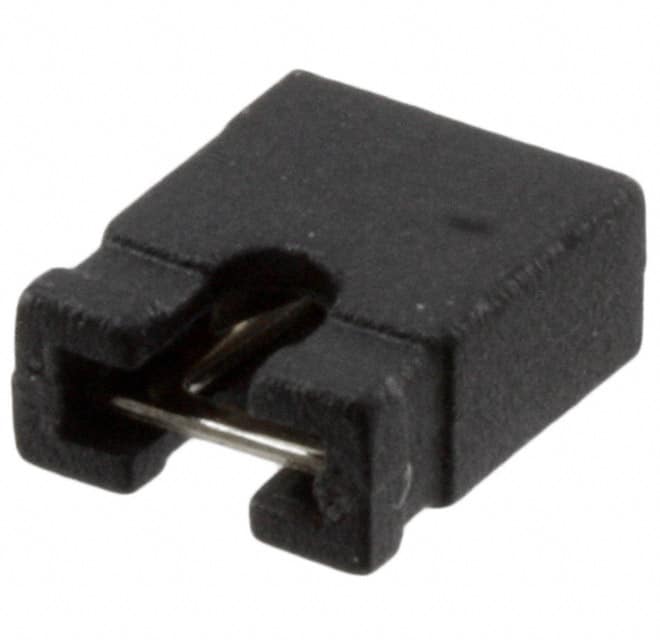

The Sullins Connector Solutions QPC02SXGN-RC is a 2-position open top jumper designed for 2.54mm (0.100") contact centers. It is part of the QPC02 series and features a black polybutylene terephthalate (PBT) housing with a UL94 V-0 flammability rating. The contacts are made of brass with a gold flash finish, providing reliable electrical performance.
This jumper is rated for a current of 3A and has a height of 5.97mm (0.235"). The open top design allows for easy probing or daisy-chaining. The part is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
Typical applications include shorting or configuration of header pins on PCBs, prototyping, and test setups where a reliable, low-profile connection is needed. The 2.54mm pitch is compatible with standard breadboards and pin headers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.03 | $0.03 |
| 25+ | $0.03 | $0.03 |
| 50+ | $0.03 | $0.03 |
| 100+ | $0.02 | $0.02 |
| 250+ | $0.02 | $0.02 |
| 500+ | $0.02 | $0.02 |
| 2,000+ | $0.02 | $0.02 |
| 4,000+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3A
2.54mm (0.100")
2 positions (1 x 2)
Polybutylene Terephthalate (PBT) with UL94 V-0 rating
Gold flash
RoHS3 Compliant (unverified)
