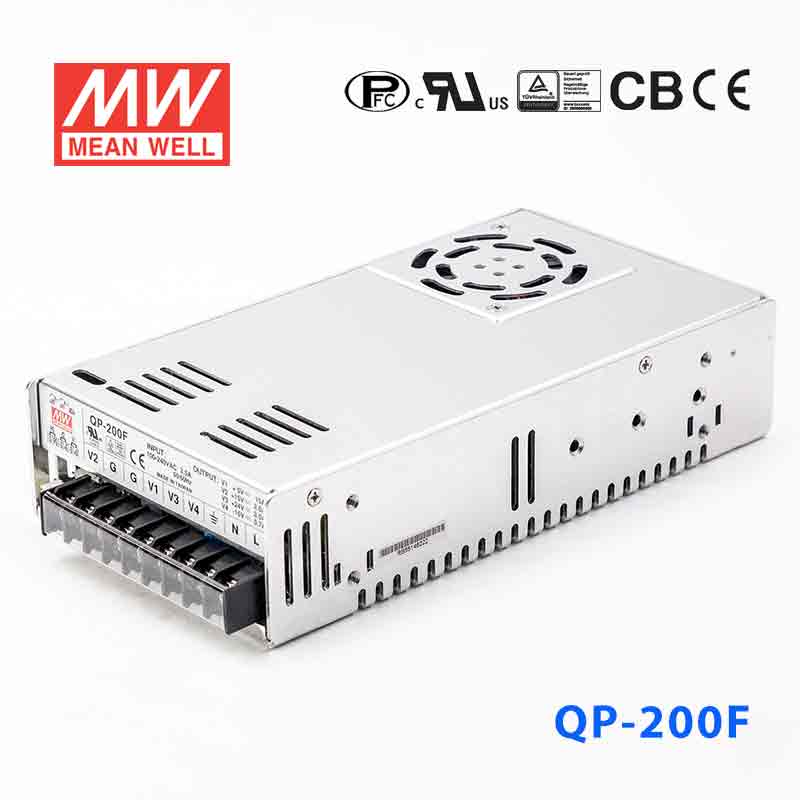

The Mean Well USA QP-200F is an enclosed AC/DC converter designed for ITE (Commercial) applications. It offers a universal AC input range of 90-264VAC and provides multiple outputs including 5V, 15V, 24V, and -15V, with a total power rating of 203W. The unit features a rated current of 15A for the 5V output and 700mA for the -15V output.
Key electrical features include built-in active PFC function with PF>0.95, adjustable output voltage for CH1 and CH2 within ±10%, overload protection at 110%-150%, and over-voltage protection at 115%-135% of the rated output voltage. It also incorporates a remote sense function for CH1 and CH2 and operates at a fixed switching frequency of 100KHz. The converter is cooled by a built-in DC fan and can operate at high temperatures up to 60°C.
Mechanically, the QP-200F is designed for chassis mounting with dimensions of 8.46 x 4.52 x 1.96 inches and weighs 2.64 lbs. It meets various safety and EMC standards, including UL60950-1, TUV EN60950-1, and EN55032 class B. The unit comes with a 3-year warranty.
The Mean Well QP-200F has multiple outputs including 5V, 15V, 24V, and -15V.
The QP-200F converter has a power rating of 203W.
The QP-200F accepts a universal AC input voltage range of 90-264VAC.
The QP-200F supports chassis mounting.
The QP-200F operates within a temperature range of -10°C to 60°C.
Yes, the QP-200F features overload protection ranging from 110% to 150%.
The QP-200F is approved under safety standards UL60950-1 and TUV EN60950-1.
