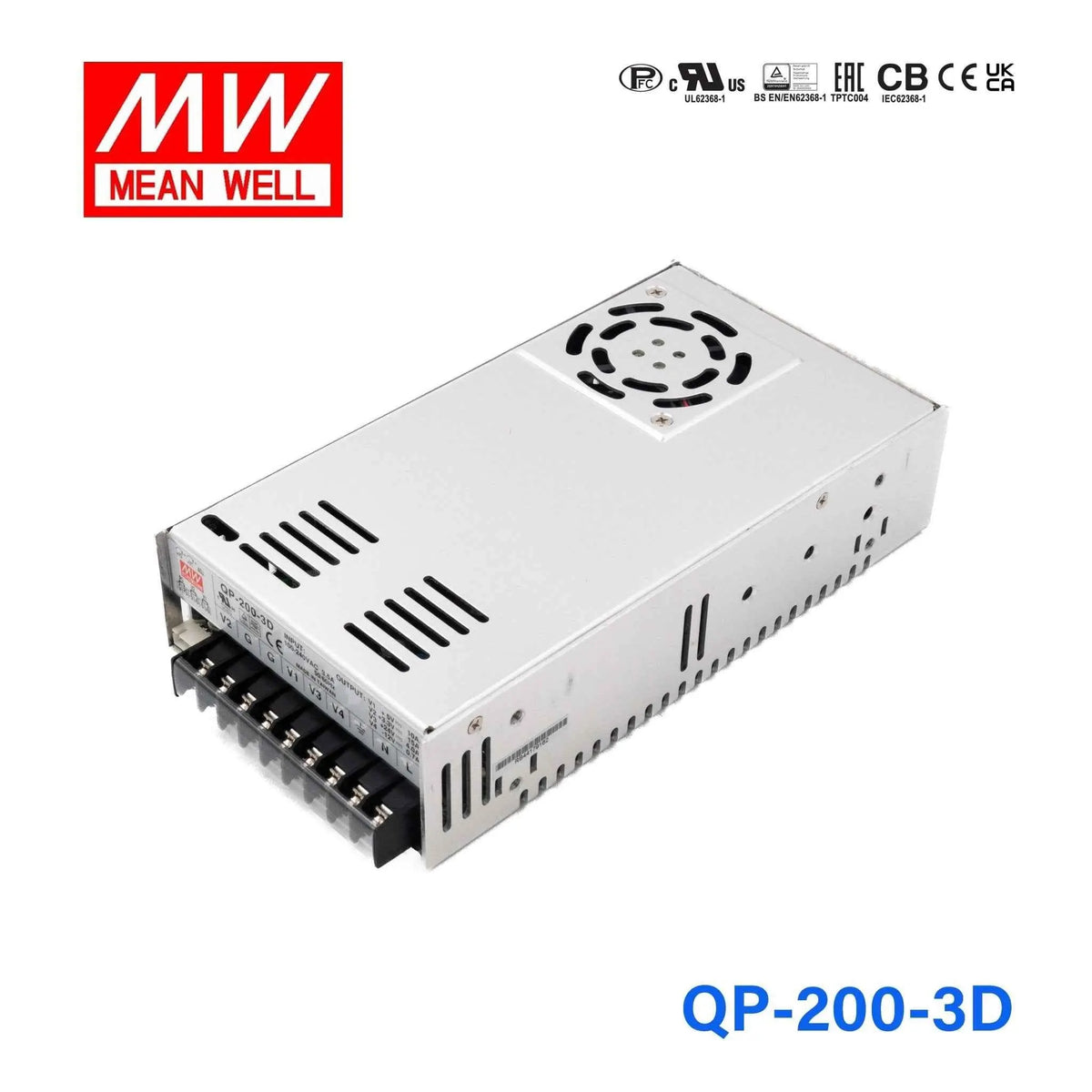

The Mean Well USA QP-200-3D is an enclosed AC/DC converter designed for ITE (Commercial) applications. It operates with a universal AC input range of 90V to 264V and provides a rated output power of 204W. The converter features a 5V output voltage and a rated current of 10A.
Key specifications include a line regulation of ±1.0% and a load regulation of ±2.0%. The unit incorporates protection against short circuit, over current, over voltage, and over temperature. It also includes built-in active PFC function with PF>0.95 and forced air cooling via a built-in DC fan. The dimensions are 8.46 x 4.52 x 1.96 inches.
This converter is suitable for various applications requiring a stable and reliable power source. Its features like adjustable output, PFC, and remote sense make it a versatile component for system integration.
The input voltage range is 90V to 264V AC.
The output voltage is 5V DC.
The rated current is 10A.
The power rating is 203.9W.
The operating temperature range is -10°C to 60°C.
The QP-200-3D uses chassis mount.
