| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Voltage Range | |
| Width |

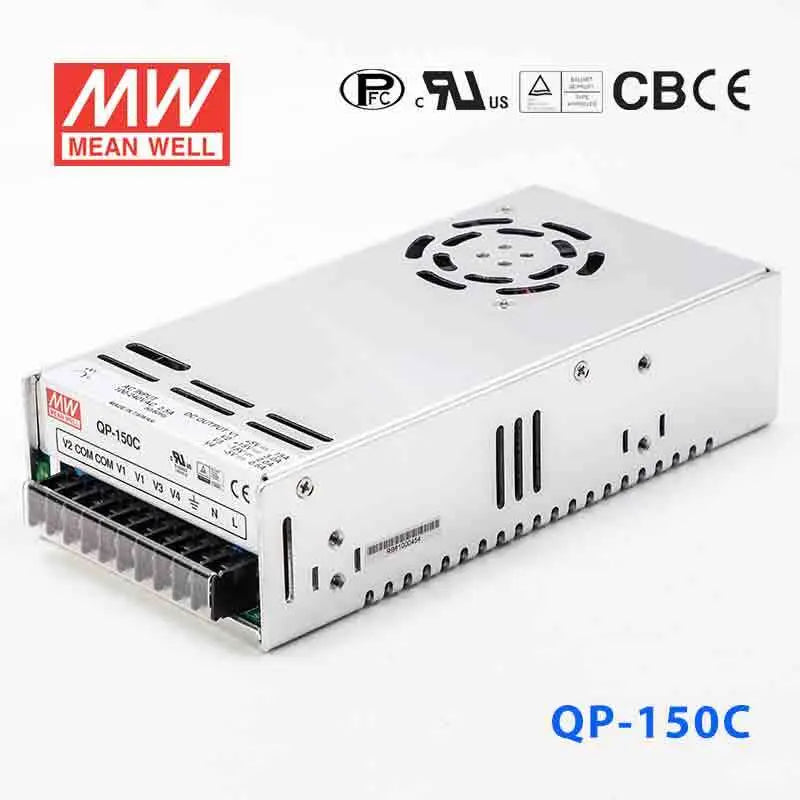

The Mean Well USA QP-150-3C is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers a maximum power of 152W and accepts a universal input voltage range of 90-264VAC.
Key electrical specifications include adjustable output voltage, a power factor greater than 0.95 at full load, and an efficiency of 74%. The converter offers four outputs and features overload and over-voltage protection.
Mechanically, the QP-150-3C is chassis mountable with dimensions of 199.0mm x 99.0mm x 50.0mm. It operates within a temperature range of -10°C to 60°C and has a working humidity range of 20-90% RH non-condensing.
Safety certifications include UL60950-1, TUV BS EN/EN62368-1, and EAC TP TC 004. EMC standards met are EN55032 class B and EN61000 series.
The input voltage range is 90 to 264 VAC.
The outputs are 5V, 3.3V, and ±15V, totaling four outputs.
The output power is 152W.
Overload protection (105-150% rated output power) and overvoltage protection (115-135% rated output voltage).
The operating temperature range is -10°C to +60°C with derating.
The dimensions are 199.0mm (L) x 99.0mm (W) x 50.0mm (H).
It complies with UL60950-1, TUV BS EN/EN62368-1, and EAC TP TC 004.
